Inspection [12/2017 - ]: Procedure
- INSPECT NO. 3 TURBO PRESSURE SENSOR
- Measure the resistance according to the value(s) in the table below.

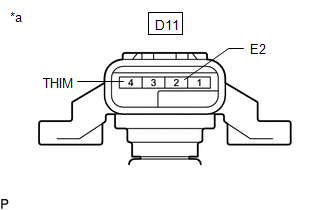

*a Component without harness connected
(No. 3 Turbo Pressure Sensor)Standard Resistance
Tester Connection Condition Specified Condition D11-4 (THIM) - D11-2 (E2) - 20°C (- 36°F) 14.6 to 17.8 kΩ 20°C (68°F) 2.21 to 2.69 kΩ 80°C (176°F) 0.290 to 0.354 kΩ If the result is not as specified, replace the No. 3 turbo pressure sensor.
- Measure the resistance according to the value(s) in the table below.
