Inspection [12/2017 - ]: Procedure

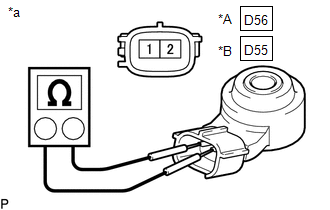

- INSPECT KNOCK CONTROL SENSOR
- Measure the resistance according to the value(s) in the table below.
*A for Bank 1 *B for Bank 2 *a Component without harness connected
(Knock Control Sensor)Standard Resistance (for Bank 1)
Tester Connection Condition Specified Condition D56-1 - D56-2 25°C (77°F) 120 to 280 kΩ Standard Resistance (for Bank 2)
Tester Connection Condition Specified Condition D55-1 - D55-2 25°C (77°F) 120 to 280 kΩ If the result is not as specified, replace the knock control sensor.
- Measure the resistance according to the value(s) in the table below.
