2021 Lexus LS 500 Base, AWDFACTORY OEM SERVICE PROCEDURE

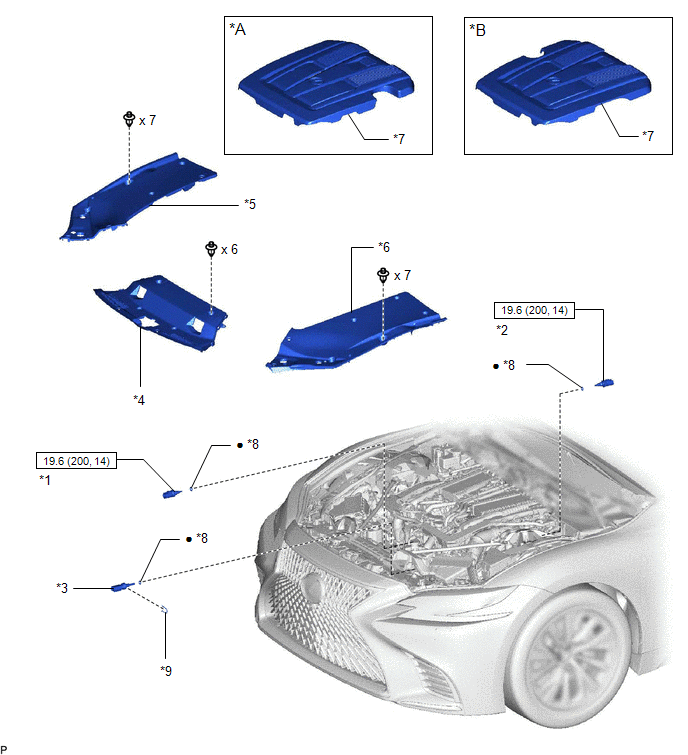

Components [12/2017 - ]
| *A | for 2WD | *B | for AWD |
| *1 | E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Front) | *2 | E.F.I. ENGINE COOLANT TEMPERATURE SENSOR (for Rear) |
| *3 | ENGINE COOLANT TEMPERATURE SENSOR | *4 | LOWER RADIATOR AIR DEFLECTOR |
| *5 | RADIATOR COVER PLATE | *6 | UPPER RADIATOR SUPPORT SEAL |
| *7 | V-BANK COVER SUB-ASSEMBLY | *8 | GASKET |
| *9 | CLIP | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
