2021 Lexus LS 500 Base, AWDFACTORY OEM SERVICE PROCEDURE

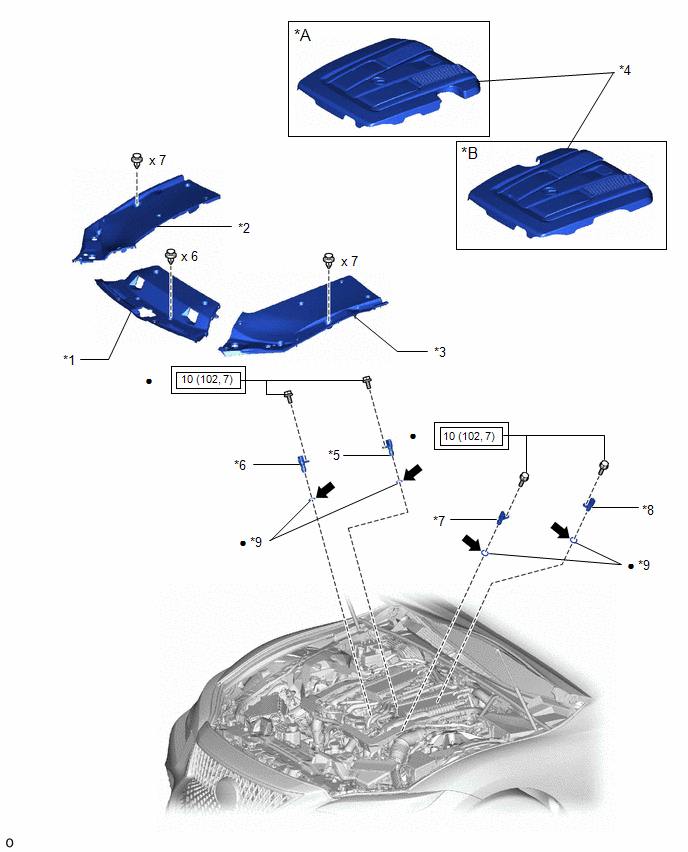

Components [12/2017 - ]
| *A | for 2WD | *B | for AWD |
| *1 | LOWER RADIATOR AIR DEFLECTOR | *2 | RADIATOR COVER PLATE |
| *3 | UPPER RADIATOR SUPPORT SEAL | *4 | V-BANK COVER SUB-ASSEMBLY |
| *5 | VVT SENSOR (for Intake Side of Bank 1) | *6 | VVT SENSOR (for Exhaust Side of Bank 1) |
| *7 | VVT SENSOR (for Intake Side of Bank 2) | *8 | VVT SENSOR (for Exhaust Side of Bank 2) |
| *9 | O-RING | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| * | Precoated part | Engine oil |
