2021 Lexus LS 500 Base, AWDFACTORY OEM SERVICE PROCEDURE
Components [12/2017 - ]
| *A | for 2WD | *B | for AWD |

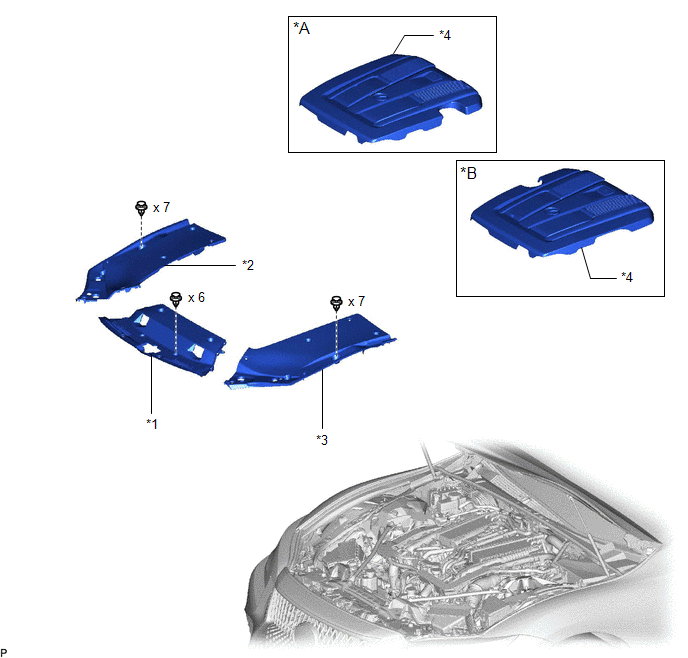

| *1 | LOWER RADIATOR AIR DEFLECTOR | *2 | RADIATOR COVER PLATE |
| *3 | UPPER RADIATOR SUPPORT SEAL | *4 | V-BANK COVER SUB-ASSEMBLY |

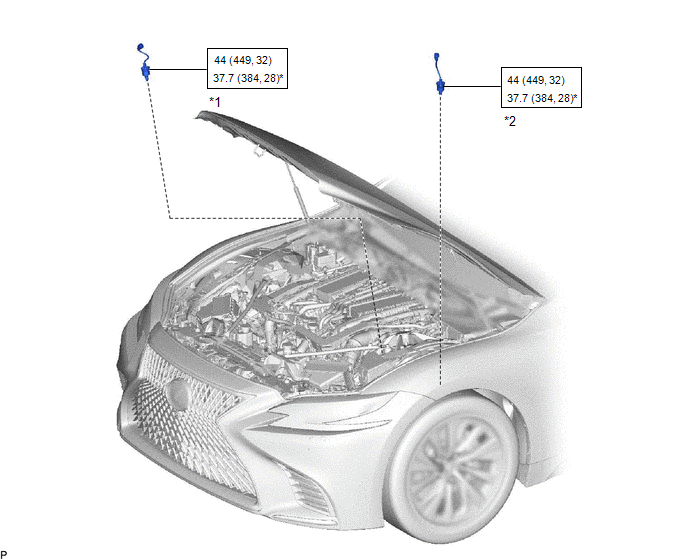

| *1 | AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1) | *2 | AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1) |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
| *A | for 2WD | - | - |

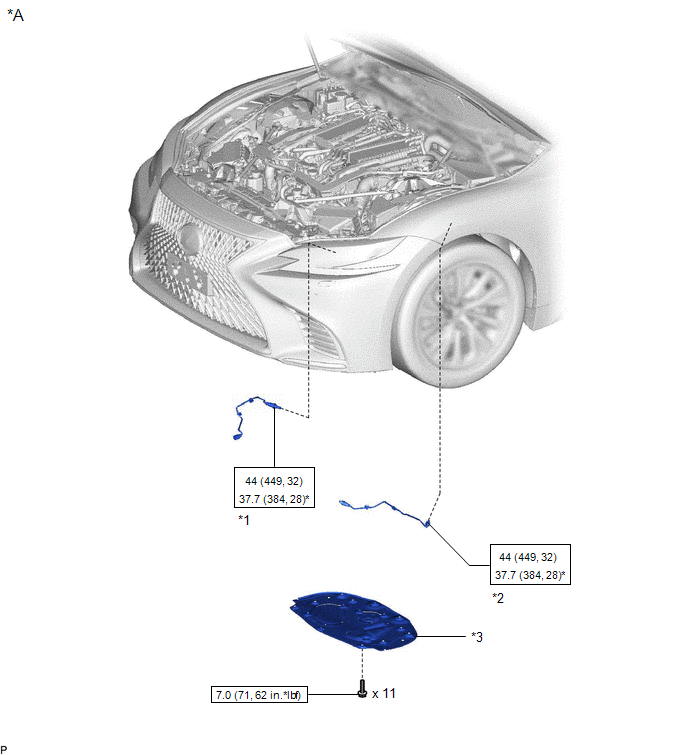

| *1 | AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2) | *2 | AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2) |
| *3 | NO. 2 ENGINE UNDER COVER ASSEMBLY | *4 | TRANSMISSION UNDER COVER |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | * | Precoated part |
| *A | for AWD | - | - |

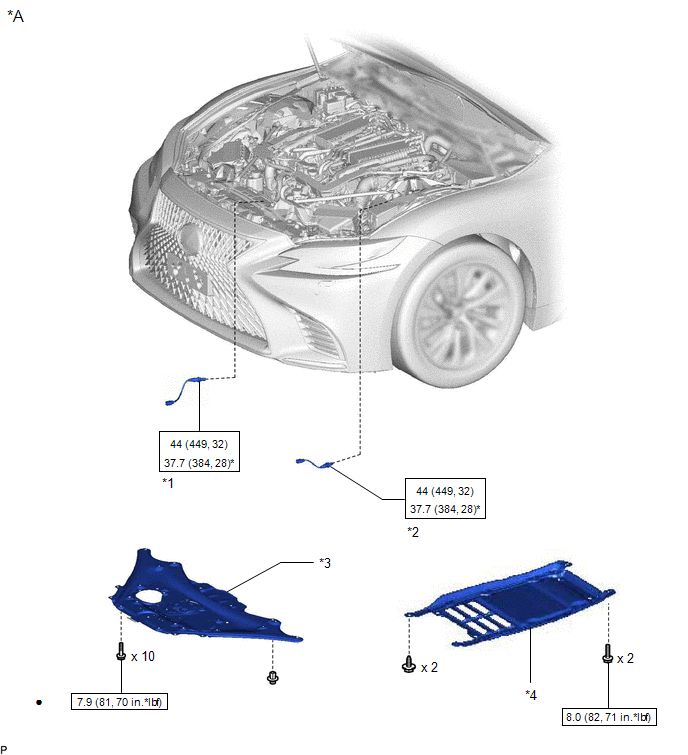

| *1 | AIR FUEL RATIO SENSOR (for Bank 1 Sensor 2) | *2 | AIR FUEL RATIO SENSOR (for Bank 2 Sensor 2) |
| *3 | NO. 2 ENGINE UNDER COVER ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST |
