2021 Lexus LC 500hFACTORY OEM SERVICE PROCEDURE

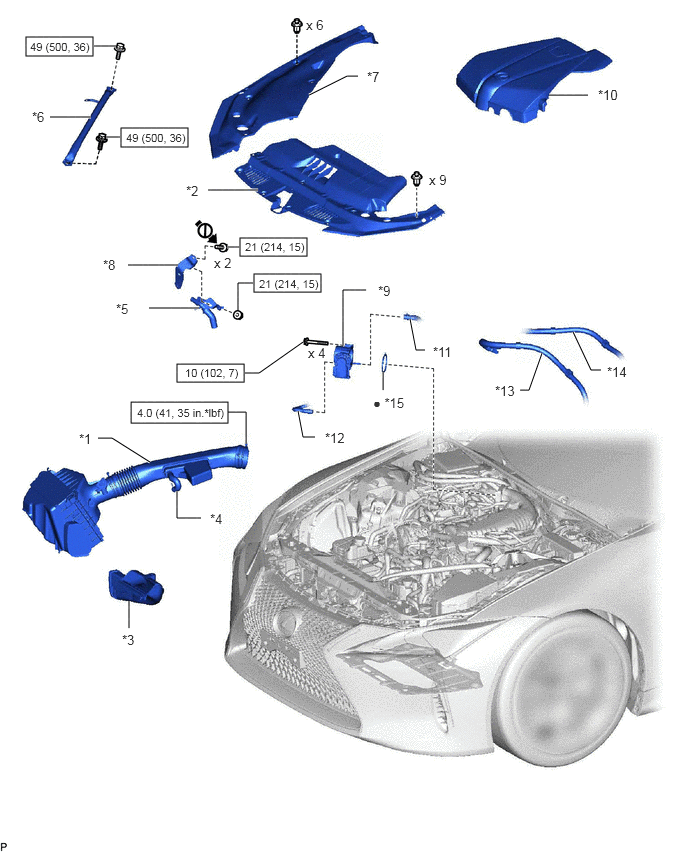

Components [01/2017 - ]
| *1 | AIR CLEANER WITH AIR CLEANER HOSE | *2 | LOWER RADIATOR AIR DEFLECTOR |
| *3 | NO. 1 AIR CLEANER INLET | *4 | NO. 2 PCV HOSE |
| *5 | NO. 3 WATER BY-PASS HOSE ASSEMBLY | *6 | RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH |
| *7 | RADIATOR SUPPORT TO FRAME SEAL RH | *8 | THROTTLE BODY BRACKET |
| *9 | THROTTLE BODY WITH MOTOR ASSEMBLY | *10 | V-BANK COVER SUB-ASSEMBLY |
| *11 | WATER BY-PASS HOSE | *12 | NO. 4 WATER BY-PASS HOSE |
| *13 | MOTOR CABLE | *14 | GENERATOR CABLE |
| *15 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part | |
| Do not apply lubricants to the threaded parts | - | - |
