2021 Lexus LC 500 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

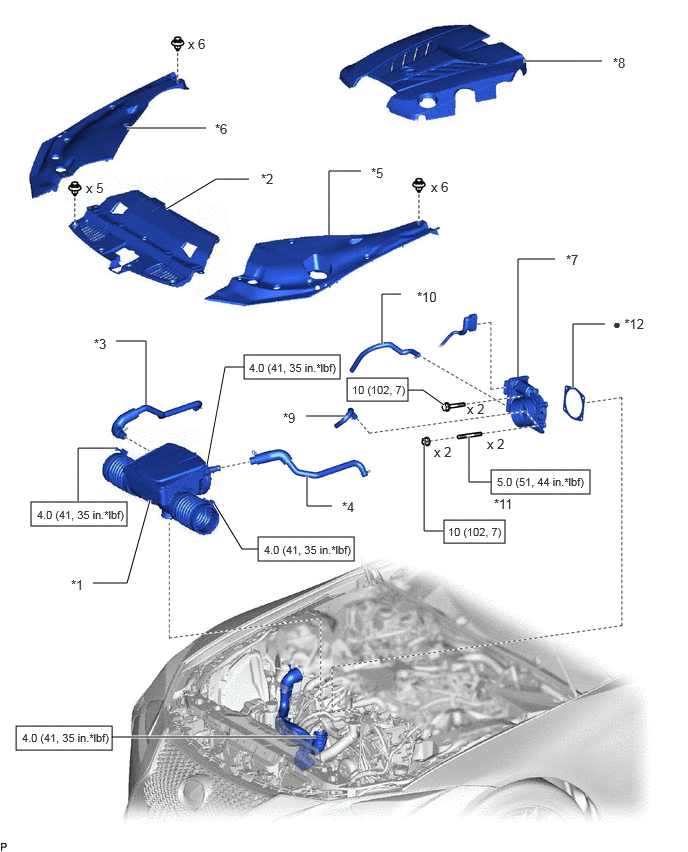

Components [07/2020 - ]
| *1 | AIR CLEANER HOSE ASSEMBLY | *2 | LOWER RADIATOR AIR DEFLECTOR |
| *3 | NO. 2 PCV HOSE | *4 | NO. 3 PCV HOSE |
| *5 | RADIATOR SUPPORT TO FRAME SEAL LH | *6 | RADIATOR SUPPORT TO FRAME SEAL RH |
| *7 | THROTTLE BODY WITH MOTOR ASSEMBLY | *8 | V-BANK COVER SUB-ASSEMBLY |
| *9 | NO. 4 WATER BY-PASS HOSE | *10 | NO. 5 WATER BY-PASS HOSE |
| *11 | STUD BOLT | *12 | GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
