On-Vehicle Inspection [07/2020 - ]: Procedure
- INSPECT NO. 1 IGNITION RELAY (IG1)

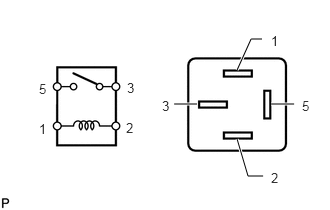

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 1 ignition relay (IG1).
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 2 IGNITION RELAY (IG2)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 2 ignition relay (IG2).
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 1 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI MAIN NO. 1)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 1 electronic fuel injection main relay (EFI MAIN NO. 1)
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 2 ELECTRONIC FUEL INJECTION MAIN RELAY (EFI MAIN NO. 2)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 2 electronic fuel injection main relay (EFI MAIN NO. 2)
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 5 ELECTRONIC FUEL INJECTION RELAY (EFI NO. 5)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 5 electronic fuel injection main relay (EFI NO. 5)
- Measure the resistance according to the value(s) in the table below.
- INSPECT AIR FUEL RATIO SENSOR HEATER RELAY (A/F HTR)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the air fuel ratio sensor heater relay (A/F HTR)
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 1 ELECTRONIC DRIVER UNIT RELAY (EDU NO. 1)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 1 electronic driver unit relay (EDU NO. 1)
- Measure the resistance according to the value(s) in the table below.
- INSPECT NO. 2 ELECTRONIC DRIVER UNIT RELAY (EDU NO. 2)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 3 - 5 Battery voltage not applied between terminals 1 and 2 10 kΩ or higher Battery voltage applied between terminals 1 and 2 Below 1 Ω If the result is not as specified, replace the NO. 2 electronic driver unit relay (EDU NO. 2)
- Measure the resistance according to the value(s) in the table below.
