2021 Lexus LC 500 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

Removal [07/2020 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  2. REMOVE RADIATOR SUPPORT TO FRAME SEAL RH

    Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]

  3. REMOVE RADIATOR SUPPORT TO FRAME SEAL LH

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  4. REMOVE LOWER RADIATOR AIR DEFLECTOR

    Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

  5. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 2 [07/2020 - 11/2021] , or refer to PROCEDURE - Step 2 [11/2021 - ]

  6. DISCONNECT NO. 2 PCV HOSE

    See step  6

  7. DISCONNECT NO. 3 PCV HOSE

    See step  7

  8. REMOVE AIR CLEANER HOSE ASSEMBLY

    See step  8

  9. REMOVE ENGINE OIL TEMPERATURE SENSOR
    1. Disconnect the engine oil temperature sensor connector.
      GTY515731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

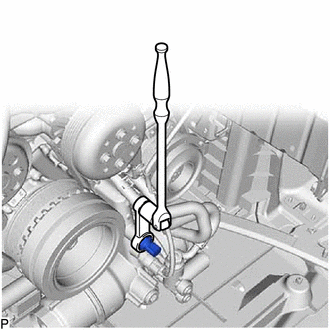

    2. Using a 22 mm ball joint lock nut wrench, remove the engine oil temperature sensor from the oil filter bracket sub-assembly.
      NOTE:

      If the engine oil temperature sensor has been struck or dropped, replace it.

      GTY797250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the gasket from the engine oil temperature sensor.
