Removal [07/2020 - ]: Procedure
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 1 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 1 [05/2023 - ]
- REMOVE RADIATOR SUPPORT TO FRAME SEAL LH
Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]
- REMOVE LOWER RADIATOR AIR DEFLECTOR
Refer to PROCEDURE - Step 3 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]
- DISCONNECT NO. 2 PCV HOSE
See step 6
- DISCONNECT NO. 3 PCV HOSE
See step 7
- REMOVE AIR CLEANER HOSE ASSEMBLY
See step 8
- REMOVE ENGINE COOLANT TEMPERATURE SENSOR

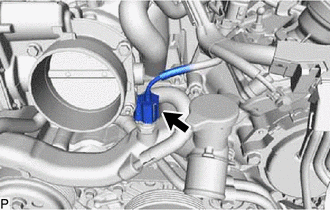

- Disconnect the engine coolant temperature sensor connector.

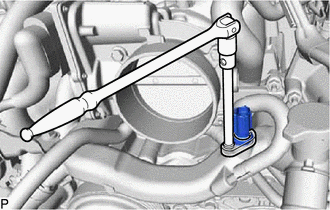

- Using a 19 mm union nut wrench, remove the engine coolant temperature sensor from the front water by-pass joint.NOTE:
If the engine coolant temperature sensor has been struck or dropped, replace it.
- Remove the gasket from the engine coolant temperature sensor.
