2021 Lexus LC 500 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

Removal [07/2020 - 05/2023]: Procedure

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to REMOVAL [07/2020 - 05/2023]

  2. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [07/2020 - 05/2023]

  3. REMOVE ECM

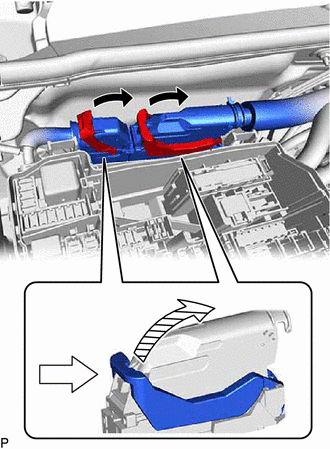

    1. Push in the locks on the 2 levers, raise the 2 levers, and disconnect the 2 ECM connectors.
      GTY787903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push
      Raise

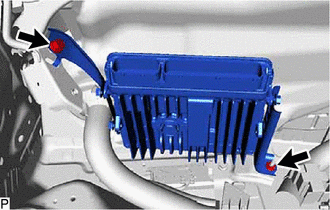

    2. Remove the bolt and nut.
      GTY797294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the ECM.
      NOTE:

      If the ECM has been struck or dropped, replace it.

  4. REMOVE NO. 1 ECM BRACKET

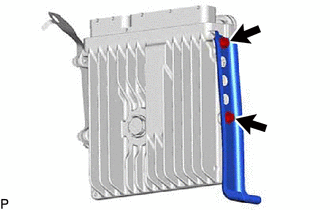

    1. Remove the 2 screws and No. 1 ECM bracket from the ECM.
      GTY797292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 ECM BRACKET

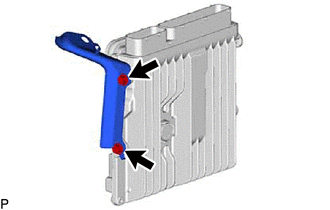

    1. Remove the 2 screws and No. 2 ECM bracket from the ECM.
      GTY797295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
