Removal [08/2015 - ]: Procedure
- REMOVE LOWER FRONT BUMPER COVER
Refer to PROCEDURE - Step 7 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]
- REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 8 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - ]
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 5
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]
- REMOVE AIR CLEANER CAP AND HOSE
Refer to PROCEDURE - Step 24 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 24 [08/2020 - ]
- REMOVE THROTTLE BODY ASSEMBLY

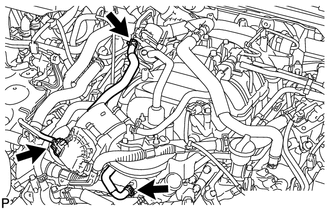

- Disconnect the No. 4 water by-pass hose and No. 12 water by-pass hose.
- Disconnect the throttle position sensor and control motor connector.

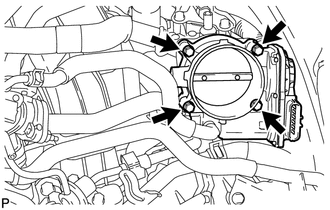

- Remove the 4 bolts, throttle body and gasket.

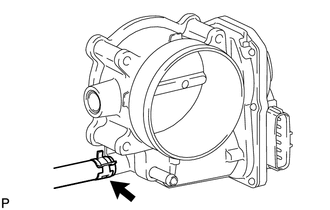

- Remove the No. 12 water by-pass hose from the throttle body.

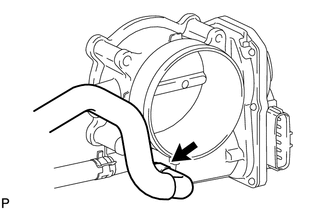

- Remove the No. 4 water by-pass hose from the throttle body.
- Disconnect the No. 4 water by-pass hose and No. 12 water by-pass hose.
