2021 Lexus GX 460 BaseFACTORY OEM SERVICE PROCEDURE

Inspection [08/2015 - ]: Procedure

INSPECT THROTTLE BODY ASSEMBLY

Check the throttle valve.
1. Check that the throttle valve opens and closes smoothly.
2. Check that there is no sludge accumulating around the throttle body.

Check the throttle control motor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
1 (M-) - 2 (M+)	20°C (68°F)	0.3 to 100 Ω

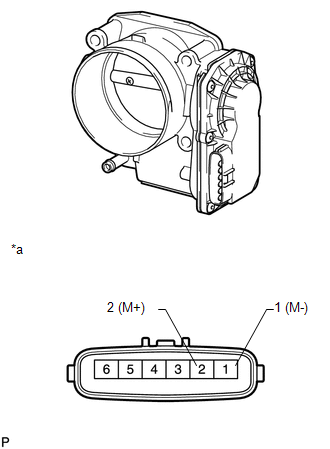

TEXT IN ILLUSTRATION

*a	Component without harness connected (Throttle Body)

If the result is not as specified, replace the throttle body assembly.
