2021 Lexus GX 460 BaseFACTORY OEM SERVICE PROCEDURE

Removal [08/2015 - ]: Procedure

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16 [08/2015 - 08/2020] , or refer to PROCEDURE - Step 16 [08/2020 - ]

REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

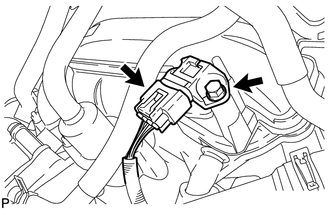

Disconnect the manifold absolute pressure sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt and manifold absolute pressure sensor.
Remove the O-ring from the manifold absolute pressure sensor.
