2021 Lexus GX 460 BaseFACTORY OEM SERVICE PROCEDURE

Removal [08/2015 - ]: Procedure

REMOVE INSTRUMENT PANEL BOX ASSEMBLY
1. Remove the instrument panel box (Refer to REMOVAL [08/2015 - 08/2019] , or refer to REMOVAL [08/2019 - 08/2021] , or refer to REMOVAL [08/2021 - ] ).

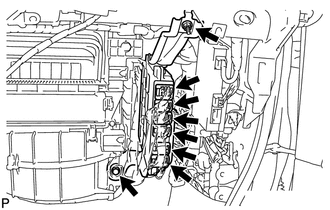

REMOVE ECM

Disconnect the 6 ECM connectors.

GTY286377

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt, nut and ECM.

REMOVE ECM BRACKET

Remove the 2 screws and ECM bracket.

GTY275041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

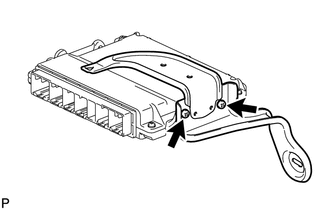

REMOVE NO. 2 ECM BRACKET

Remove the 2 screws and No. 2 ECM bracket.

GTY275038

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
