Removal [08/2015 - ]: Procedure
- REMOVE FRONT NO. 1 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

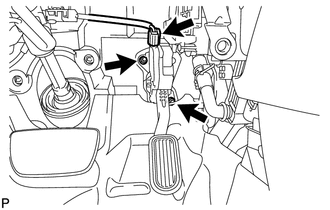

- REMOVE ACCELERATOR PEDAL POSITION SENSOR ASSEMBLY NOTE:
This accelerator pedal position sensor assembly does not require lubrication. Do not apply oil or other lubrication to the accelerator pedal position sensor assembly.
If applied, the accelerator pedal position sensor assembly must be replaced.
