2021 Lexus ES 350 BaseFACTORY OEM SERVICE PROCEDURE
Inspection [06/2018 - ]: Procedure
- INSPECT KNOCK CONTROL SENSORΒ
- Measure the resistance according to the value(s) in the table below.

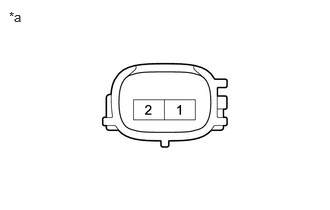

*a Component without harness connected
(Knock Control Sensor)Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 25Β°C (77Β°F) 120 to 280 kΞ© If the result is not as specified, replace the knock control sensor.
- Measure the resistance according to the value(s) in the table below.
