2021 Lexus ES 250 BaseFACTORY OEM SERVICE PROCEDURE

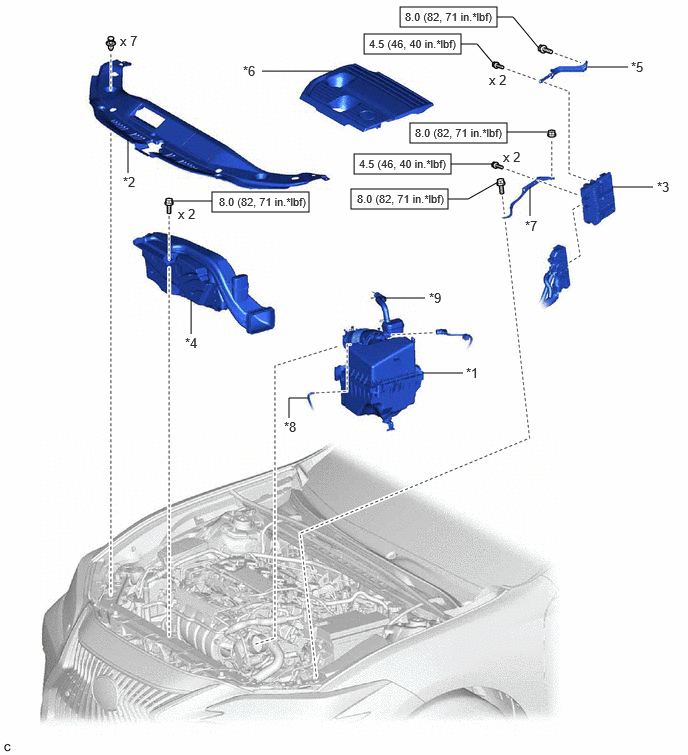

Components [08/2021 - ]
| *1 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | ECM | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | NO. 1 ECM BRACKET | *6 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *7 | NO. 2 ECM BRACKET | *8 | VACUUM HOSE |
| *9 | NO. 2 VENTILATION HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
