2018 Lexus RC FFACTORY OEM SERVICE PROCEDURE

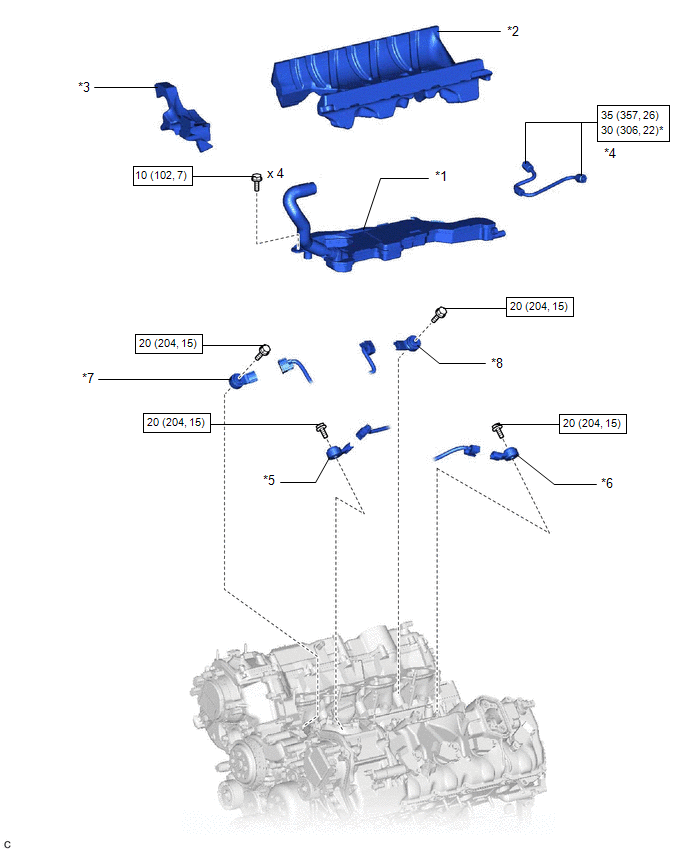

Components [09/2014 - ]
| *1 | CASE SEPARATOR | *2 | NO. 1 ENGINE COVER SUB-ASSEMBLY |
| *3 | NO. 2 ENGINE COVER SUB-ASSEMBLY LH | *4 | NO. 4 FUEL PIPE SUB-ASSEMBLY |
| *5 | KNOCK CONTROL SENSOR (for Bank 1 Sensor 1) | *6 | KNOCK CONTROL SENSOR (for Bank 1 Sensor 2) |
| *7 | KNOCK CONTROL SENSOR (for Bank 2 Sensor 1) | *8 | KNOCK CONTROL SENSOR (for Bank 2 Sensor 2) |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with a union nut wrench |
