2018 Lexus RC FFACTORY OEM SERVICE PROCEDURE

Components [09/2014 - ]

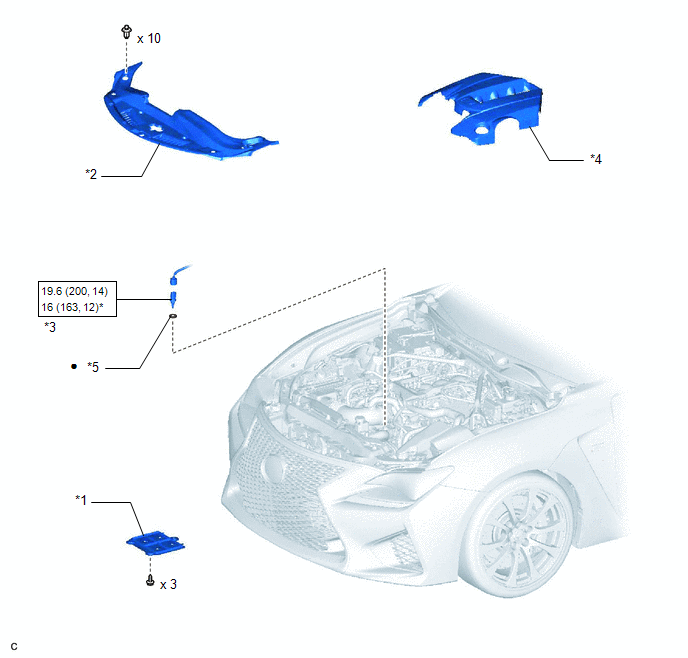

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER NO. 4 ENGINE UNDER COVER	*2	COOL AIR INTAKE DUCT SEAL
*3	ENGINE COOLANT TEMPERATURE SENSOR	*4	V-BANK COVER SUB-ASSEMBLY
*5	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-
