2017 Lexus IS 300 BaseFACTORY OEM SERVICE PROCEDURE

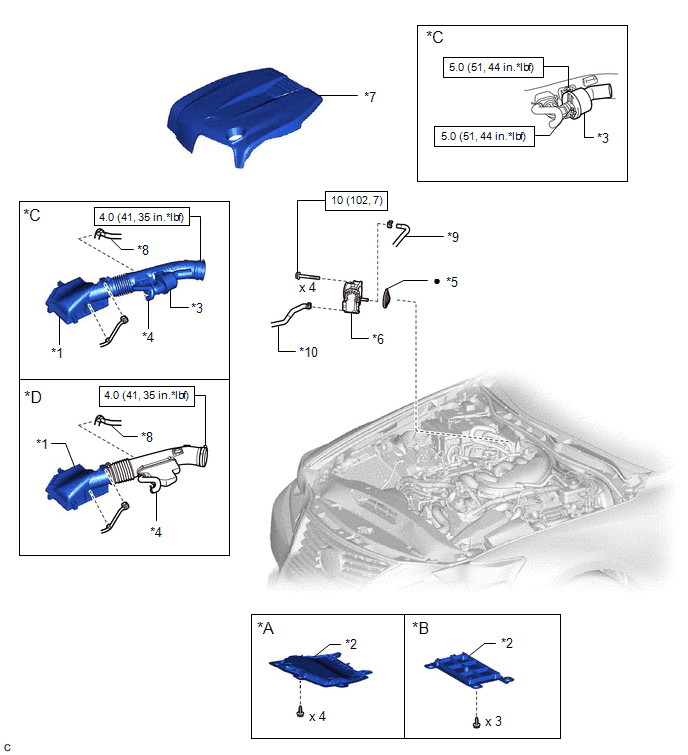

Components [08/2015 - 10/2017]
| *A | For 2WD | *B | For AWD |
| *C | w/ Intake Air Sound Creator | *D | w/o Intake Air Sound Creator |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | CENTER NO. 4 ENGINE UNDER COVER |
| *3 | INTAKE AIR SOUND CREATOR | *4 | NO. 2 VENTILATION HOSE |
| *5 | THROTTLE BODY GASKET | *6 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *7 | V-BANK COVER SUB-ASSEMBLY | *8 | NO. 2 FUEL VAPOR FEED HOSE |
| *9 | NO. 1 WATER BY-PASS HOSE | *10 | NO. 2 WATER BY-PASS HOSE |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
