2017 Lexus IS 300 BaseFACTORY OEM SERVICE PROCEDURE

Components [04/2013 - 10/2017]

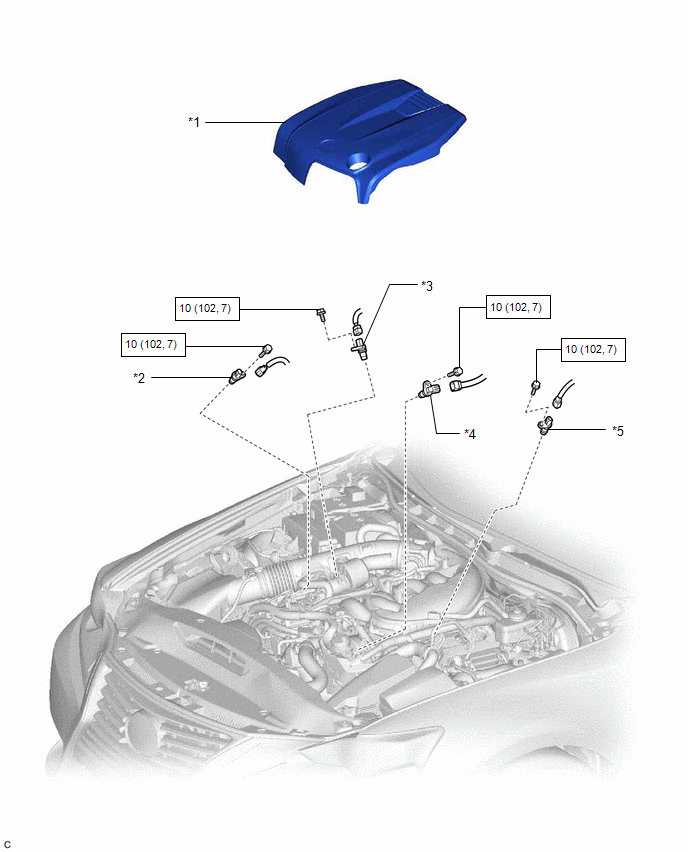

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	V-BANK COVER SUB-ASSEMBLY	*2	VVT SENSOR (for Intake Side of Bank 1)
*3	VVT SENSOR (for Exhaust Side of Bank 1)	*4	VVT SENSOR (for Intake Side of Bank 2)
*5	VVT SENSOR (for Exhaust Side of Bank 2)	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
