DTC B265B: Lumbar Support Sensor Circuit: Procedure
- CHECK FOR DTC
- DTC output area check
- Using the Techstream, determine the area that output the DTC. Refer to DTC CHECK / CLEAR [09/2012 - ]
.RESULT
Result Proceed to B265B output from driver seat ECU A B265B output from passenger seat ECU B
- Using the Techstream, determine the area that output the DTC. Refer to DTC CHECK / CLEAR [09/2012 - ]
.
B → See step 8
A: Go to next step
- DTC output area check
- PERFORM ACTIVE TEST USING TECHSTREAM (POWER SEAT MOTOR FUNCTION)
- Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function. Refer to DATA LIST / ACTIVE TEST [09/2012 - ]
.DRIVER SEAT
Tester Display Test Part Control Range Diagnostic Note Lumbar Slide Lumbar sliding operation Front / OFF / Rear - OK
Motor operates normally.
NG → See step 6
OK: Go to next step
- Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function. Refer to DATA LIST / ACTIVE TEST [09/2012 - ]
.

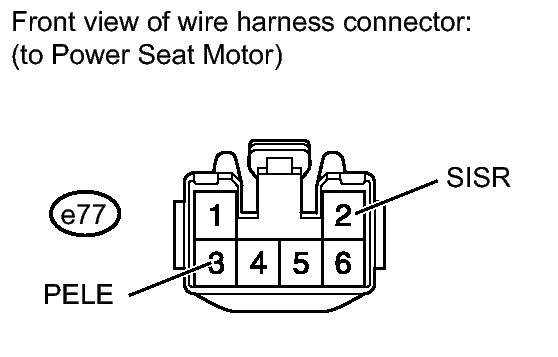

- CHECK FRONT POWER SEAT SWITCH LH (POSITION CONTROL SENSOR)
- Disconnect the e77 motor connector.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition e77-2 (SISR) - e77-3 (PELE) Lumbar switch ON 4.8 to 5.1 V
NG → See step 5
OK: Go to next step
- Disconnect the e77 motor connector.

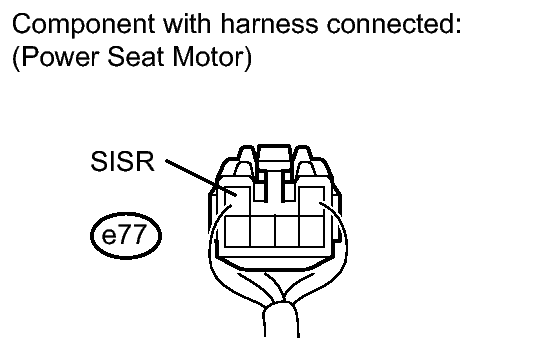

- CHECK LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (POSITION CONTROL SENSOR)
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition e77-2 (SISR) - Body ground Lumbar switch ON 4.5 to 4.8 V
NG → See step 15
OK → See step 18
- Measure the voltage according to the value(s) in the table below.

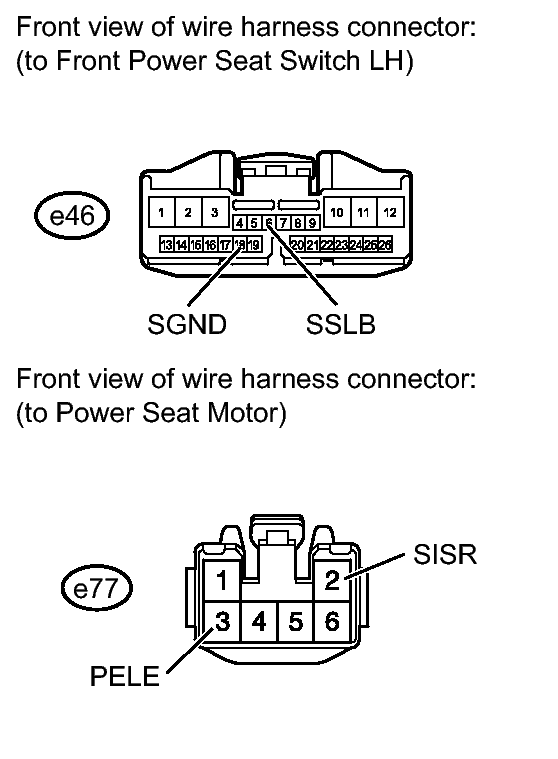

- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - POWER SEAT MOTOR)
- Disconnect the e46 switch connector.
- Disconnect the e77 motor connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e46-6 (SSLB) - e77-2 (SISR) Always Below 1 Ω e46-18 (SGND) - e77-3 (PELE) Always Below 1 Ω e46-6 (SSLB) - Body ground Always 10 kΩ or higher e46-18 (SGND) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 19
- Disconnect the e46 switch connector.
- CHECK LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (POWER SEAT MOTOR)
- Remove the lumbar support adjuster assembly LH. Refer to REMOVAL [09/2012 - ] .
- Inspect the lumbar support adjuster assembly LH. Refer to INSPECTION [09/2012 - ] .
NG → See step 16
OK: Go to next step

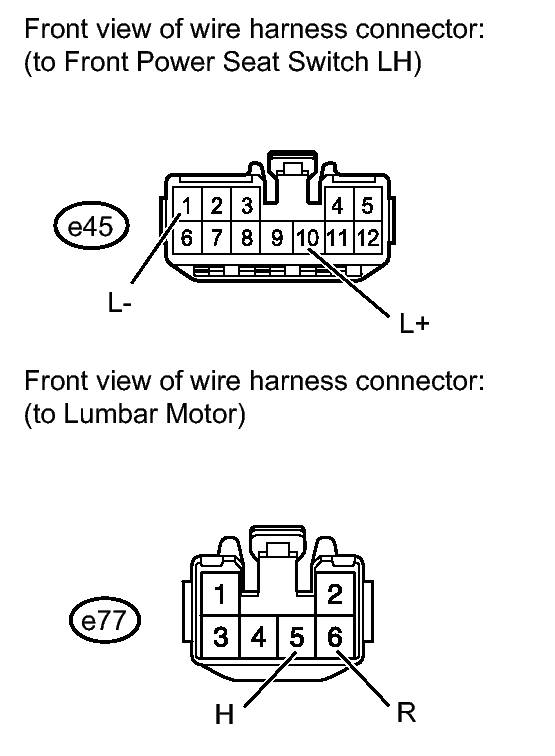

- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH LH - POWER SEAT MOTOR)
- Disconnect the e45 switch connector.
- Disconnect the e77 motor connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e45-10 (L+) - e77-5 (H) Always Below 1 Ω e45-1 (L-) - e77-6 (R) Always Below 1 Ω e45-10 (L+) - Body ground Always 10 kΩ or higher e45-1 (L-) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 20
- Disconnect the e45 switch connector.
- PERFORM ACTIVE TEST USING TECHSTREAM (LUMBAR SLIDE)
- Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function. Refer to DATA LIST / ACTIVE TEST [09/2012 - ]
.PASSENGER SEAT
Tester Display Test Part Control Range Diagnostic Note Lumbar Slide Lumbar sliding operation Front / OFF / Rear - OK
Motor operates normally.
NG → See step 12
OK: Go to next step
- Select the Active Test, use the Techstream to generate a control command, and then check the power seat motor function. Refer to DATA LIST / ACTIVE TEST [09/2012 - ]
.

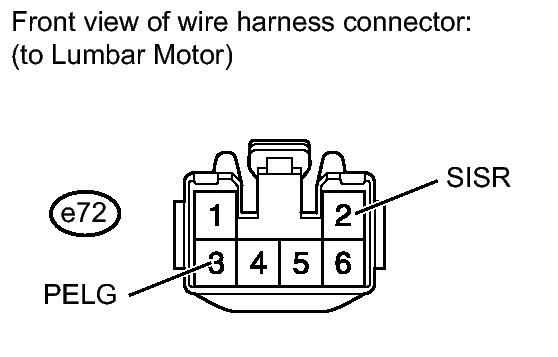

- CHECK FRONT POWER SEAT SWITCH RH (LUMBAR MOTOR CIRCUIT)
- Disconnect the e72 motor connector.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition e72-2 (SISR) - e72-3 (PELG) Lumbar switch ON 4.8 to 5.1 V
NG → See step 11
OK: Go to next step
- Disconnect the e72 motor connector.

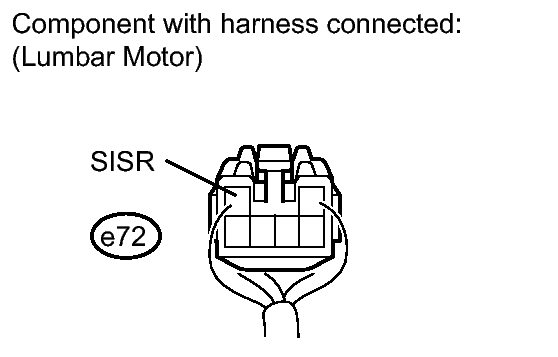

- CHECK LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (LUMBAR MOTOR)
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition e72-2 (SISR) - Body ground Lumbar switch ON 4.5 to 4.8 V
NG → See step 17
OK → See step 21
- Measure the voltage according to the value(s) in the table below.

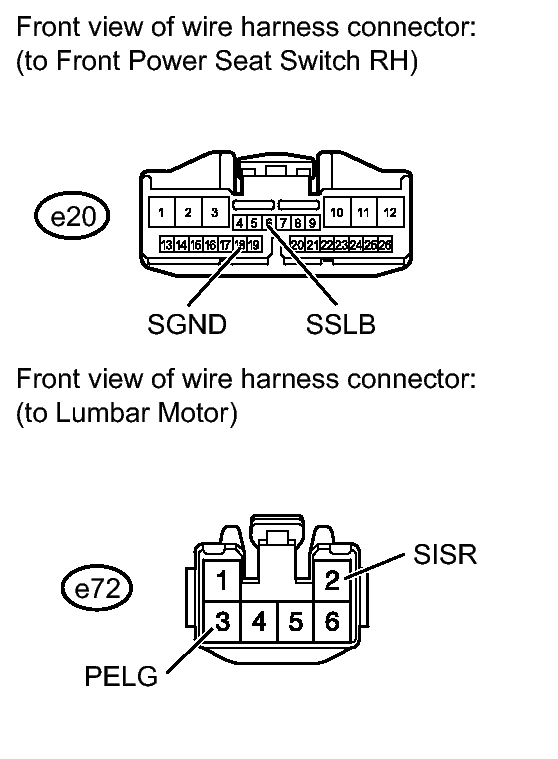

- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH RH - LUMBAR SUPPORT ADJUSTER ASSEMBLY RH)
- Disconnect the e20 switch connector.
- Disconnect the e72 motor connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e20-6 (SSLB) - e72-2 (SISR) Always Below 1 Ω e20-18 (SGND) - e72-3 (PELG) Always Below 1 Ω e20-6 (SSLB) - Body ground Always 10 kΩ or higher e20-18 (SGND) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 22
- Disconnect the e20 switch connector.
- CHECK LUMBAR SUPPORT ADJUSTER ASSEMBLY RH (POWER SEAT MOTOR)
- Remove the lumbar support adjuster assembly RH. Refer to REMOVAL [09/2012 - ] .
- Inspect the lumbar support adjuster assembly RH. Refer to INSPECTION [09/2012 - ] .
NG → See step 23
OK: Go to next step

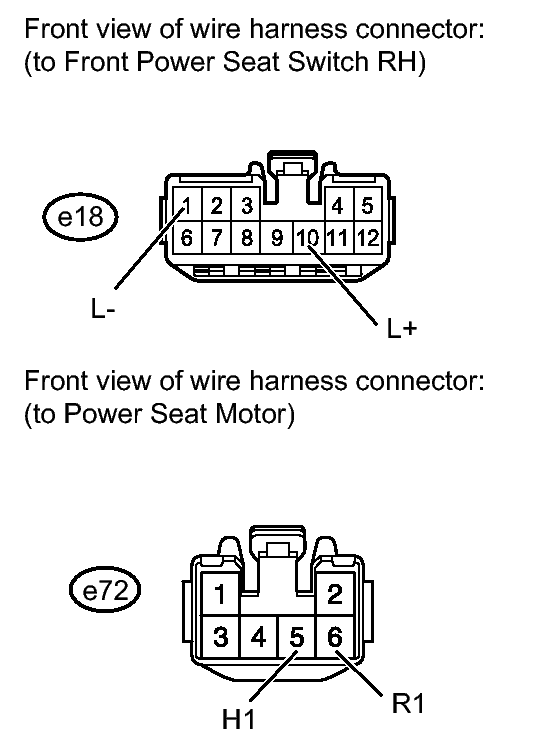

- CHECK HARNESS AND CONNECTOR (FRONT POWER SEAT SWITCH RH - POWER SEAT MOTOR)
- Disconnect the e18 switch connector.
- Disconnect the e72 motor connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition e18-10 (L+) - e72-5 (H1) Always Below 1 Ω e18-1 (L-) - e72-6 (R1) Always Below 1 Ω e18-10 (L+) - Body ground Always 10 kΩ or higher e18-1 (L-) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 14
- Disconnect the e18 switch connector.
- REPLACE FRONT POWER SEAT SWITCH RH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH (LUMBAR MOTOR). Refer to REMOVAL [09/2012 - ]
- REPLACE LUMBAR SUPPORT ADJUSTER ASSEMBLY LH. Refer to REMOVAL [09/2012 - ]
- REPLACE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH. Refer to REMOVAL [09/2012 - ]
- REPLACE FRONT POWER SEAT SWITCH LH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE FRONT POWER SEAT SWITCH LH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE FRONT POWER SEAT SWITCH LH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE FRONT POWER SEAT SWITCH RH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE FRONT POWER SEAT SWITCH RH. Refer to DISASSEMBLY [09/2012 - ]
- REPLACE LUMBAR SUPPORT ADJUSTER ASSEMBLY RH. Refer to REMOVAL [09/2012 - ]
