DTC B1206: P/W Master Switch Communication Stop: Procedure
- CLEAR DTC
- Clear the DTC. Refer to DTC CHECK / CLEAR [09/2012 - ] .
NEXT: Go to next step
- CHECK FOR DTC
- Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2012 - ]
.
OK
DTC B1206 is not output.
NG → See step 3
OK → See step 7
- Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2012 - ]
.

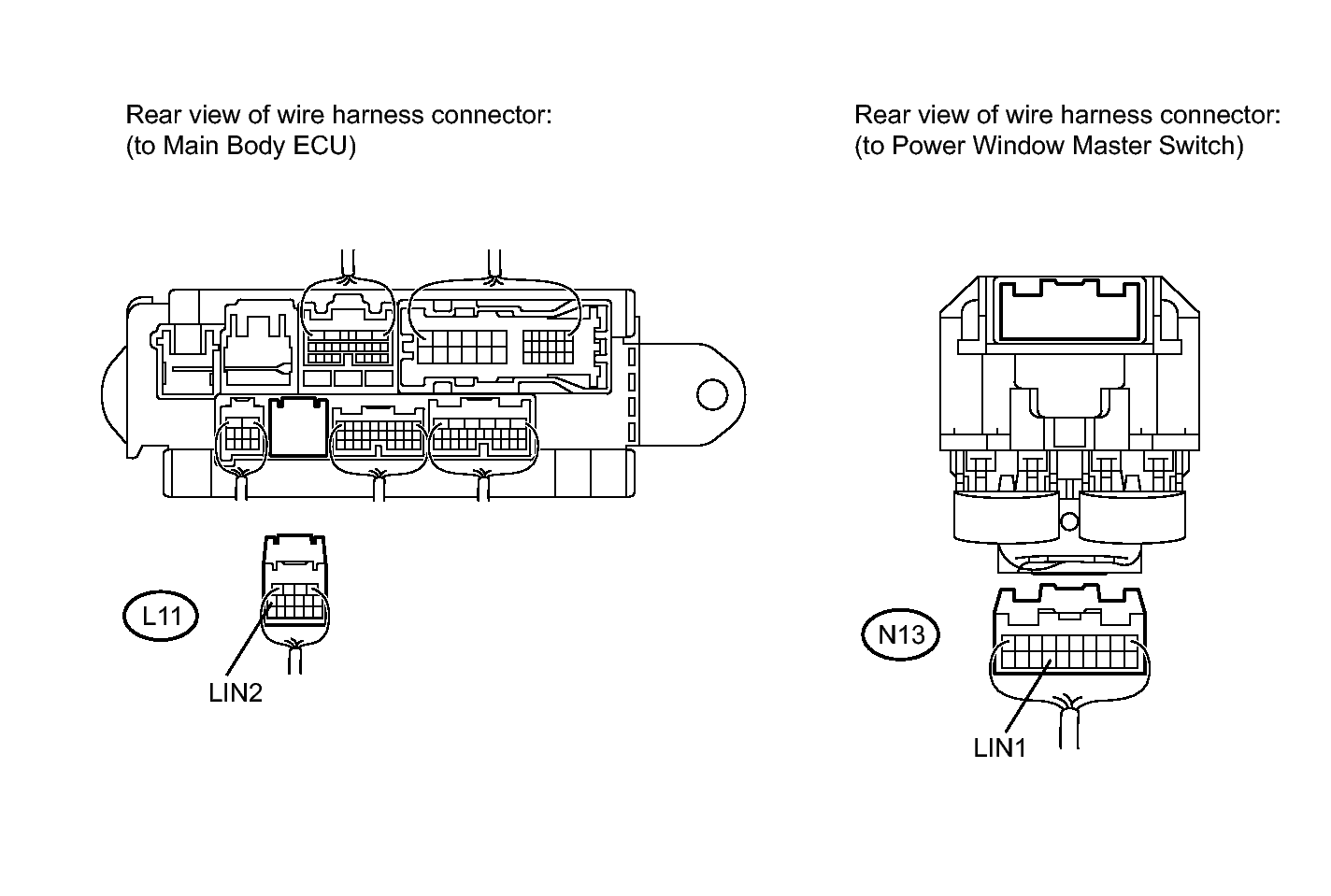

- CHECK HARNESS AND CONNECTOR (MAIN BODY ECU - POWER WINDOW MASTER SWITCH)
- Disconnect the L11 ECU connector.
- Disconnect the N13 switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition L11-10 (LIN2) - N13-17 (LIN1) Always Below 1 Ω L11-10 (LIN2) or N13-17 (LIN1) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the L11 ECU connector.

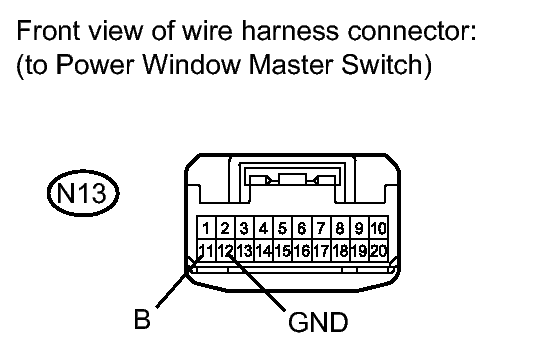

- CHECK POWER WINDOW MASTER SWITCH (BATTERY VOLTAGE AND GROUND)
- Disconnect the N13 switch connector.
- Measure the resistance and voltage according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition N13-12 (GND) - Body ground Always Below 1 Ω Standard voltage
Tester Connection Condition Specified Condition N13-11 (B) - Body ground Always 11 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the N13 switch connector.
- REPLACE POWER WINDOW MASTER SWITCH
- Temporarily replace the power window master switch with a new or normally functioning one. Refer to REMOVAL [09/2012 - ] .
NEXT: Go to next step
- CHECK FOR DTC
- Clear the DTC. Refer to DTC CHECK / CLEAR [09/2012 - ] .
- Recheck for DTC. Refer to DTC CHECK / CLEAR [09/2012 - ]
.
OK
DTC B1206 is not output.
NG → REPLACE MAIN BODY ECU (DRIVER SIDE JUNCTION BLOCK)
OK → END (POWER WINDOW MASTER SWITCH IS DEFECTIVE)
- USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2012 - ]
