TS and CG Terminal Circuit: Procedure
- CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - TS of DLC3)
- Disconnect the skid control ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

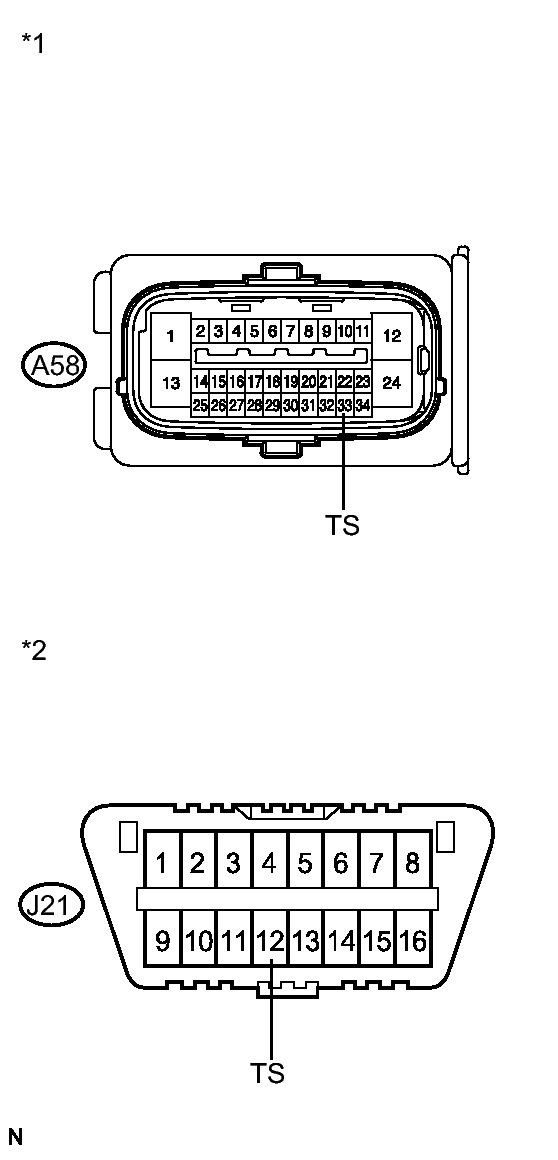

Tester Connection Condition Specified Condition A58-33 (TS) - J21-12 (TS) Always Below 1 Ω A58-33 (TS) - Body ground Always 10 kΩ or higher TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Skid Control ECU)*2 DLC3
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the skid control ECU connector.
- CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

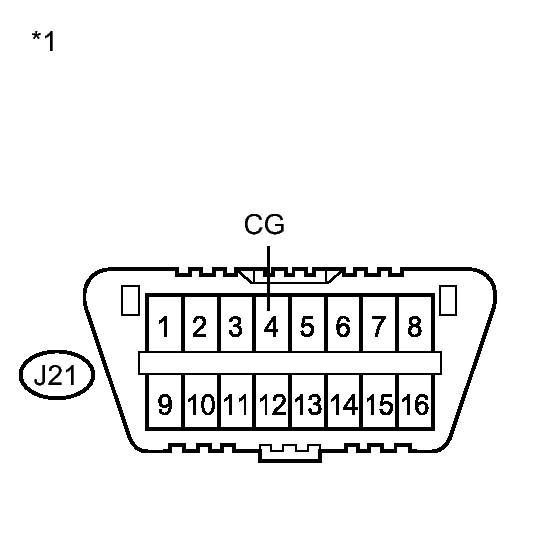

Tester Connection Condition Specified Condition J21-4 (CG) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*1 DLC3 HINT:
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part. Refer to PROBLEM SYMPTOMS TABLE [08/2012 - ] .
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 3
- Measure the resistance according to the value(s) in the table below.
- REPLACE BRAKE ACTUATOR ASSEMBLY. Refer to REMOVAL [08/2012 - ]
