2013 Lexus IS 350C BaseFACTORY OEM SERVICE PROCEDURE

DCM Power Source Circuit: Procedure

  1. CHECK HARNESS AND CONNECTOR (DCM (TELEMATICS TRANSCEIVER) - BATTERY AND BODY GROUND)
    1. Disconnect the J101 DCM (Telematics Transceiver) connector.

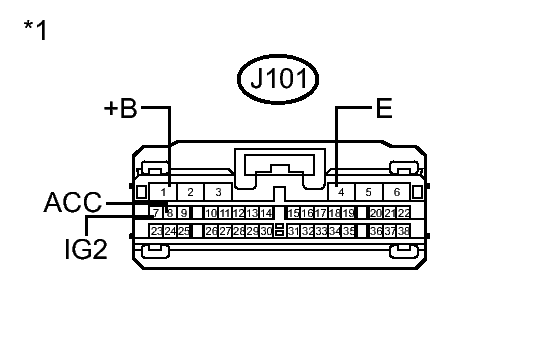

      GTY285607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J101-4 (E) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      J101-1 (+B) - J101-4 (E) Always 11 to 14 V
      J101-7 (IG2) - J101-4 (E) Engine switch on (IG) 11 to 14 V
      J101-8 (ACC) - J101-4 (E) Engine switch on (ACC) 11 to 14 V
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to DCM (Telematics Transceiver))

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   2

  2. PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to  PROBLEM SYMPTOMS TABLE [08/2012 - ]
