DTC B1273: Sliding Roof ECU Communication Stop: Procedure
- CHECK HARNESS AND CONNECTOR (METALTOP CONTROL ECU - BATTERY AND BODY GROUND)
- Disconnect the Q36 connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition Q36-6 (ECUB) - Body ground Always 11 to 14 V Standard Resistance

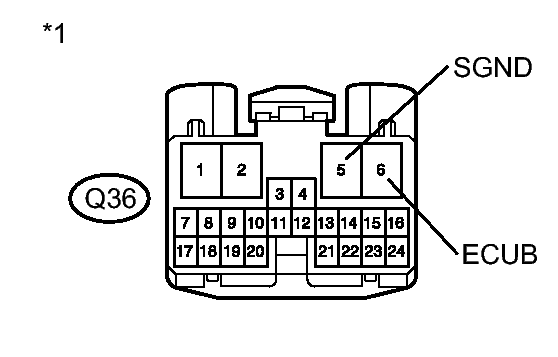

Tester Connection Condition Specified Condition Q36-5 (SGND) - Body ground Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Metaltop Control ECU (Sliding Roof Control ECU Assembly))
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the Q36 connector.
- CHECK HARNESS AND CONNECTOR (COMMUNICATION LINE)
- Disconnect the Q3 and M17 connectors.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

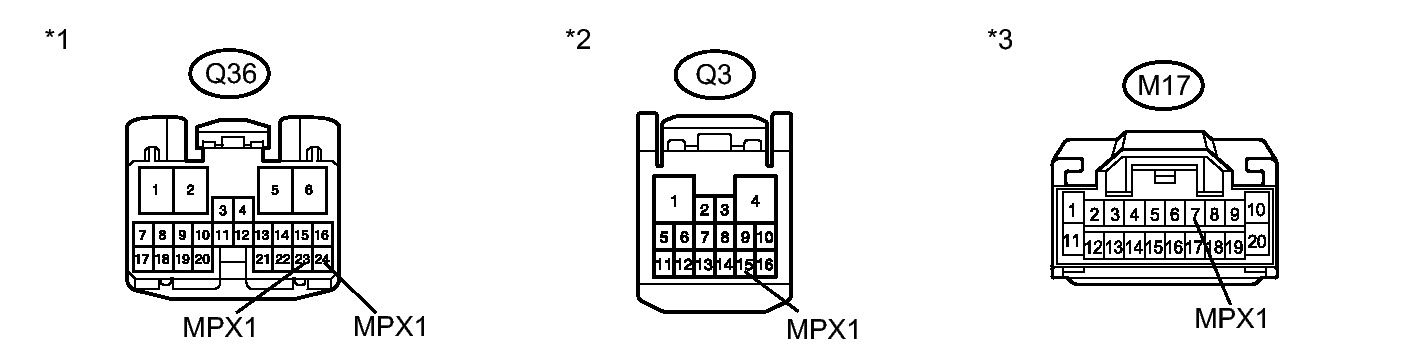

Tester Connection Condition Specified Condition Q36-23 (MPX1) - M17-7 (MPX1) Always Below 1 Ω Q36-24 (MPX1) - Q3-15 (MPX1) Always Below 1 Ω TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Metaltop Control ECU (Sliding Roof Control ECU Assembly))*2 Front view of wire harness connector
(to Main Body ECU LH (Cowl Side Junction Block LH))*3 Front view of wire harness connector
(to Power Window Regulator Master Switch Assembly)- -
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- Disconnect the Q3 and M17 connectors.
- REPLACE METALTOP CONTROL ECU (SLIDING ROOF CONTROL ECU ASSEMBLY)
- Replace the metaltop control ECU (sliding roof control ECU assembly). Refer to REMOVAL [08/2012 - ] .
NEXT: Go to next step
- CHECK DTC OUTPUT
- Clear the DTC. Refer to DTC CHECK / CLEAR [08/2012 - ] .
- Recheck for DTCs.
OK
DTC B1273 is not output.
NG → See step 5
OK → END (METALTOP CONTROL ECU WAS DEFECTIVE)
- REPLACE GATEWAY ECU. Refer to REMOVAL [08/2012 - ]
