NOTE:

While the battery is connected, even if the power switch is OFF, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal or open/close the doors while the battery is connected.

INSTALL SKID CONTROL ECU BRACKET
1. Install the bracket with the bolt and 2 nuts.

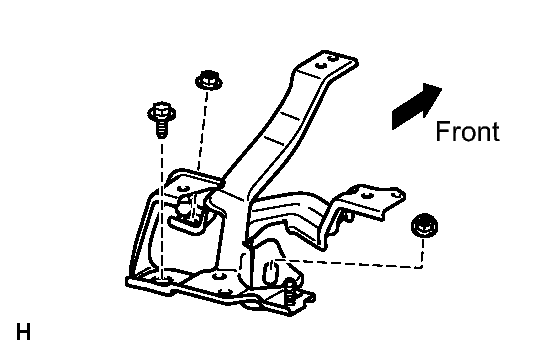

  Fig 1: Identifying Skid Control ECU Bracket, Bolt & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
CONNECT BRAKE FLUID RESERVOIR
1. Install the brake fluid reservoir with the 2 bolts.

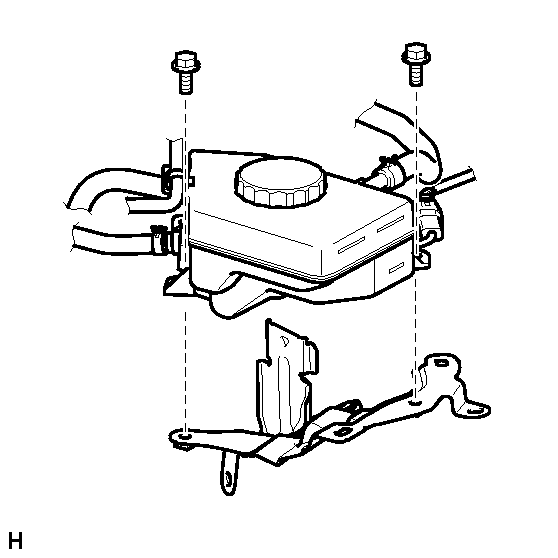

  Fig 2: Identifying Brake Fluid Reservoir Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
CONNECT NO. 3 RELAY BLOCK See step 17
INSTALL SKID CONTROL ECU
1. Connect the 2 connectors (labeled A) and press the lock levers down to lock the connectors (labeled B).

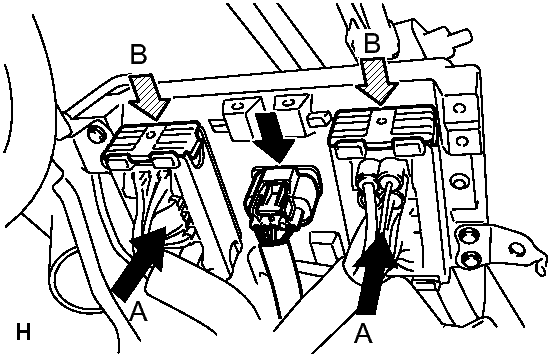

  Fig 3: Pressing Lock Levers Down To Lock Connectors (Labeled B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
