2012 Lexus LS 600hLFACTORY OEM SERVICE PROCEDURE
Engine Coolant Temperature Sensor: Removal: Removal
- REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 9
- REMOVE NO. 1 AIR CLEANER INLET . Refer to REMOVAL - Step 10
- REMOVE FRONT WHEEL OPENING EXTENSION PAD LH . Refer to REMOVAL - Step 8
- REMOVE FRONT WHEEL OPENING EXTENSION PAD RH . Refer to REMOVAL - Step 9
- REMOVE NO. 1 ENGINE UNDER COVER . Refer to REMOVAL - Step 24
- DRAIN ENGINE COOLANT . Refer to REPLACEMENT - Step 5

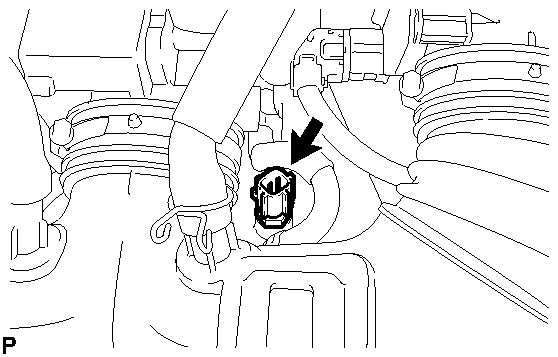

- REMOVE ENGINE COOLANT TEMPERATURE SENSOR
- Disconnect the sensor connector.
- Remove the sensor.
- Remove the gasket from the sensor.
