2012 Lexus LS 600hLFACTORY OEM SERVICE PROCEDURE
Camshaft Timing Control Motor: Inspection: Inspection
- INSPECT CAM TIMING CONTROL WITH EDU MOTOR ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

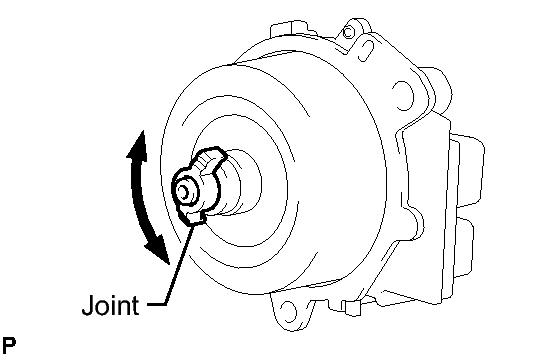

- Check that the joint of the camshaft timing control motor rotates smoothly when rotating it by hand.
OK
Rotates smoothly.
NOTE:- Do not drop the camshaft timing control motor. If dropped, replace the camshaft timing control motor assembly.
- Do not disassemble the camshaft timing control motor. If disassembled, replace the camshaft timing control motor assembly.
- Do not allow foreign matter to contact the oil seal face of the camshaft timing control motor (connecting surface with timing chain cover).
If not as specified, replace the camshaft timing control motor assembly.
- Check that the joint of the camshaft timing control motor rotates smoothly when rotating it by hand.
