2012 Lexus LS 600hLFACTORY OEM SERVICE PROCEDURE
Power Switch: Installation: Installation

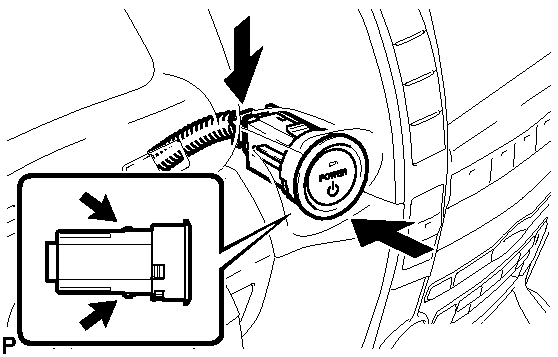

- INSTALL POWER SWITCH
- Attach the 2 claws to install the switch.
- Connect the switch connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY . Refer to INSTALLATION - Step 27
- INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING . Refer to INSTALLATION - Step 28
- INSTALL INSTRUMENT SIDE PANEL LH . Refer to INSTALLATION - Step 29
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- INSTALL BATTERY SERVICE HOLE COVER LH . Refer to INSTALLATION - Step 15
- INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
