2012 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown.

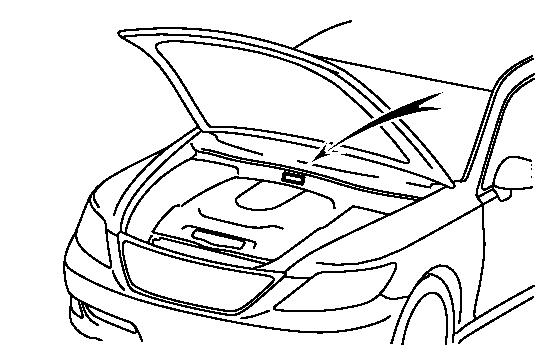

  1. Frame Number

    Fig 1: Identifying Frame Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

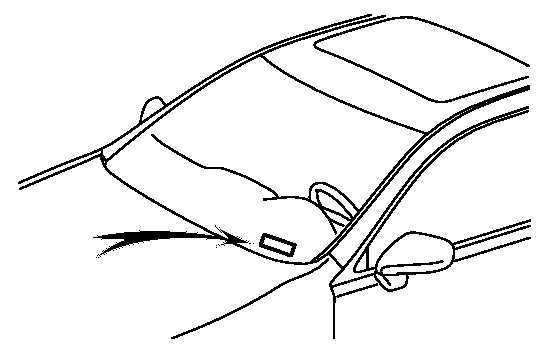

  2. Vehicle Identification Number Plate

    Fig 2: Identifying Vehicle Identification Number Plate
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

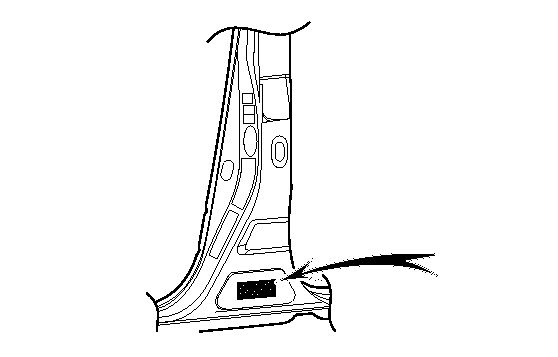

  3. Certification Label

    Fig 3: Identifying Certification Label Location
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown.

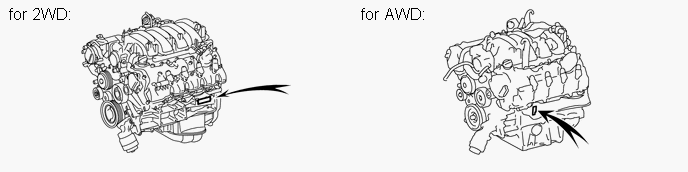

  1. Engine Serial Number

    Fig 4: Identifying Engine Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

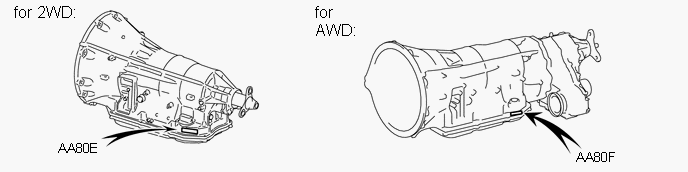

  2. Transmission Serial Number

    Fig 5: Identifying Transmission Serial Number
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
