2012 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE

STARTER (For 2WD): Disassembly: Disassembly

  1. REMOVE STARTER MAGNETIC SWITCH ASSEMBLY
    1. Remove the nut and disconnect the lead wire from the magnetic switch.

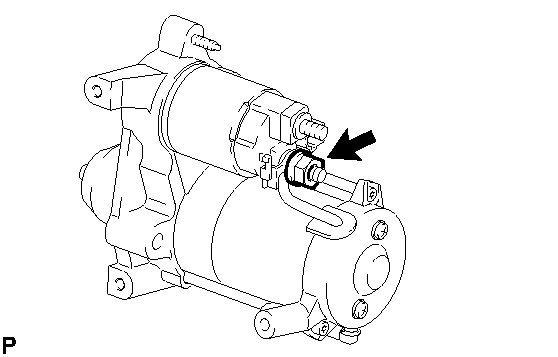

      Fig 1: Identifying Lead Wire Nut
      GTY102944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and starter magnetic switch assembly.
      Fig 2: Identifying Starter Magnetic Switch Assembly Nuts
      GTY288096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE STARTER DRIVE HOUSING ASSEMBLY
    1. Using a T30 "TORX" socket wrench, remove the 2 bolts.

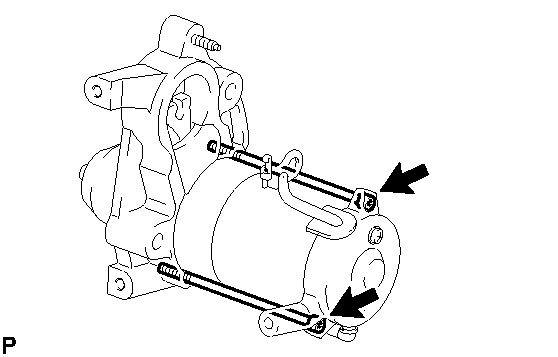

      Fig 3: Identifying Starter Drive Housing Assembly Bolts
      GTY103368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the starter yoke assembly and the starter commutator end frame assembly together with the armature.
  3. REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
    1. Remove the starter pinion drive lever.

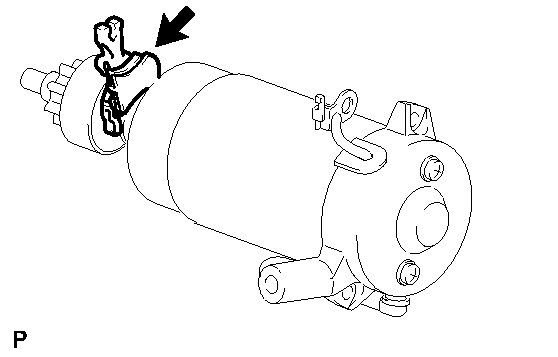

      Fig 4: Identifying Starter Pinion Drive Lever
      GTY101398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and end frame.
      NOTE: While holding down the lead wire, remove the starter commutator end frame.
