2012 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE
PTC Heater Assembly: Inspection: Inspection
- INSPECT PTC HEATER ASSEMBLY

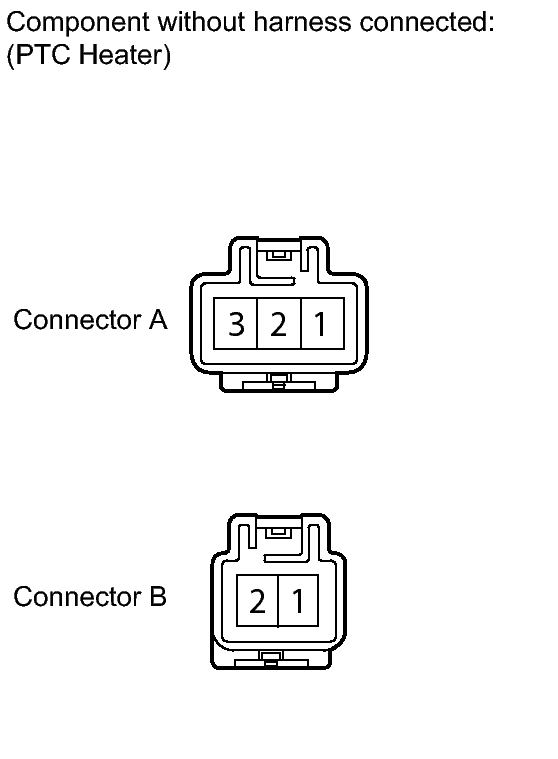

- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
Tester Connection Condition Specified Condition A-1 - B-1 23 to 25°C (73 to 77°F) 0.5 to 2.5 Ω A-2 - B-1 23 to 25°C (73 to 77°F) 0.5 to 2.5 Ω A-2 - B-2 23 to 25°C (73 to 77°F) 0.5 to 2.5 Ω A-3 - B-2 23 to 25°C (73 to 77°F) 0.5 to 2.5 Ω - If the result is not as specified, replace the PTC heater assembly.
- Measure the resistance according to the value(s) in the table below.
