2012 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE
Repair Instruction: Precaution: Precaution
- BASIC REPAIR HINT
- HINTS ON OPERATIONS
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

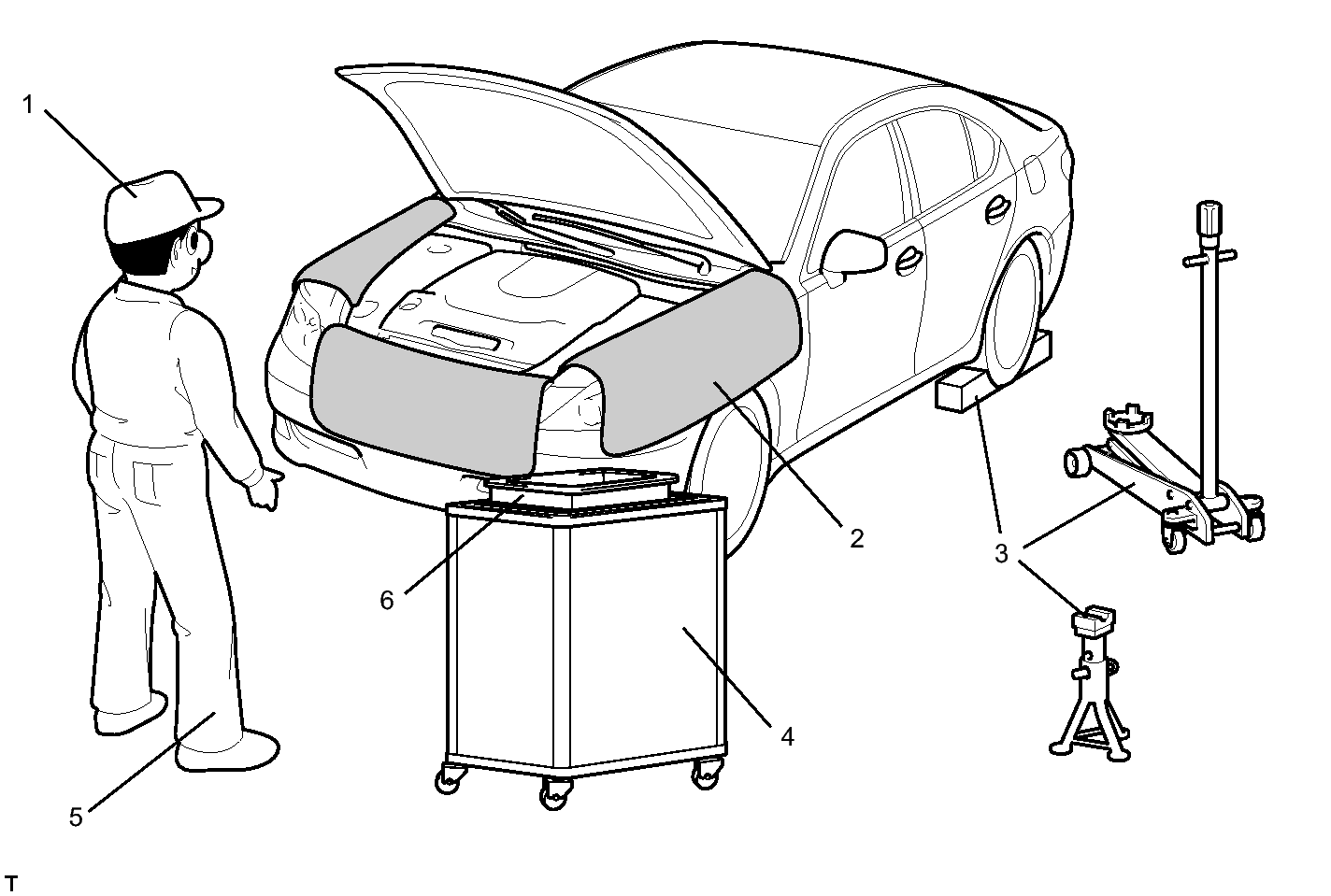

1 Attire - Always wear a clean uniform.
- Hat and safety shoes must be worn.
2 Vehicle protection Prepare a grille cover, fender cover, seat cover and floor mat before starting the operation. 3 Safe operation - Use wheel chocks to secure the vehicle.
- When working with the engine running, make sure to provide ventilation for exhaust fumes in the workshop.
- When removing or installing heavy parts, such as the engine, transmission, differential, etc., before starting work make sure there are no problems with the equipment that will be used.
- When working with 2 or more persons, be sure to check safety for one another.
- If working on high temperature, high pressure, rotating, moving, or vibrating parts, wear appropriate safety equipment and take extra care not to injure yourself or others.
4 Preparation of tools and measuring gauge Before starting operation, prepare a tool stand, SST, gauge, oil and parts for replacement. 5 Removal and installation, disassembly and assembly operations - Diagnose with a thorough understanding of proper procedures and of the reported problem.
- Before removing the parts, check the general condition of the assembly and for deformation and damage.
- When the assembly is complicated, take notes. For example, note the total number of electrical connections, bolts, or hoses removed. Add matchmarks to ensure reassembly of components in the original positions. Temporarily mark hoses and their fittings if needed.
- Clean and wash the removed parts if necessary and assemble them after a thorough check.
6 Removed parts - Place the removed parts in a separate box to avoid mixing them up with the new parts or contaminating the new parts.
- For non-reusable parts such as gaskets, O-rings, and self-locking nuts, replace them with new ones as instructed in this information.
- Retain the removed parts for customer inspection, if requested.
7* Checks to perform after work is finished - Make sure that removed and installed parts (oil filler cap, level dipstick, floor mat, etc.) are properly installed/tightened.
- Make sure that none of the cloths or tools that were used have been left in the engine compartment or within the vehicle.
- Check that there are no oil leaks.
WARNING: *: Be sure to perform these checks properly. Not performing these checks properly after finishing work can lead to serious accident or injury. - JACKING UP AND SUPPORTING VEHICLE
- Care must be taken when jacking up and supporting the vehicle. Be sure to lift and support the vehicle at the proper locations.
- PRECOATED PARTS

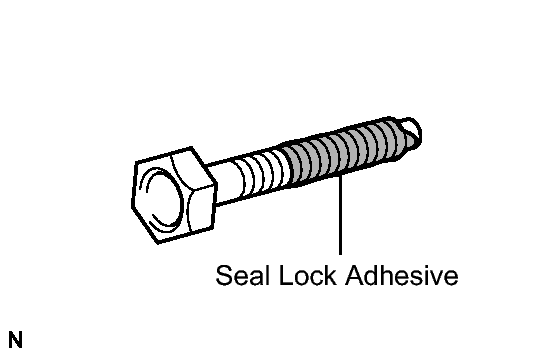

- Precoated parts are bolts and nuts that are coated with a seal lock adhesive at the factory.
- If a precoated part is retightened, loosened or moved in any way, it must be recoated with the specified adhesive.
- When reusing a precoated part, clean off the old adhesive and dry the part with compressed air. Then apply new seal lock adhesive appropriate to that part.
- Some seal lock agents harden slowly. You may have to wait for the seal lock adhesive to harden.
- GASKETS
- When necessary, use a sealer on gaskets to prevent leaks.
- BOLTS, NUTS AND SCREWS
- Carefully follow all the specifications for tightening torques. Always use a torque wrench.
- FUSES

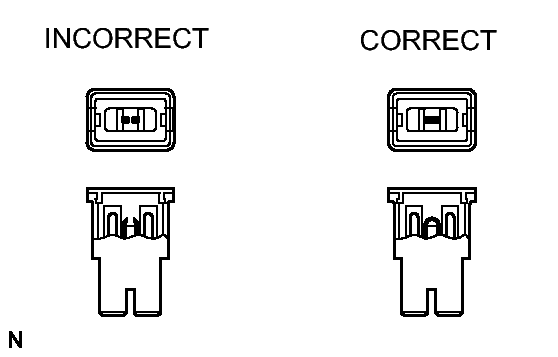

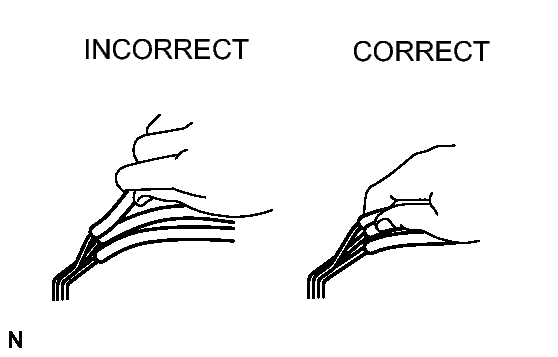

- When inspecting a fuse, check that the wire of the fuse is not broken.
- If the wire of a fuse is broken, confirm that there are no shorts in its circuit.
- When a fuse is replaced, a fuse with the same amperage rating must be used.

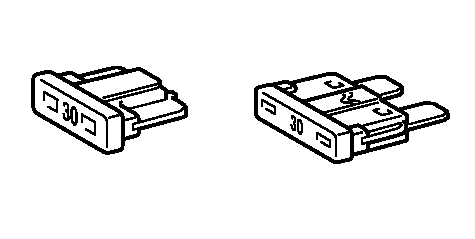

Illustration Symbol Part Name Abbreviation FUSE FUSE MEDIUM CURRENT FUSE M-FUSE HIGH CURRENT FUSE H-FUSE FUSIBLE LINK FL CIRCUIT BREAKER CB
- CLIPS
- The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.
HINT:
If clips are damaged during a procedure, always replace the clips with new clips.

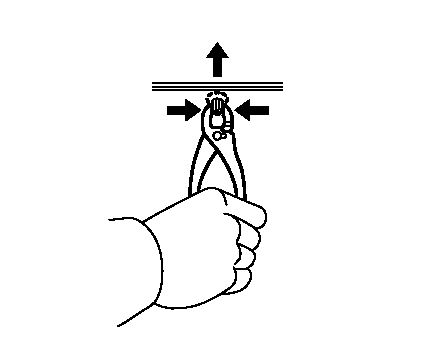

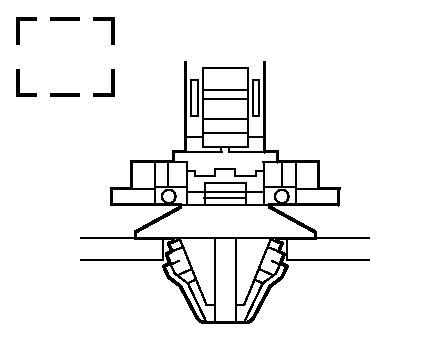

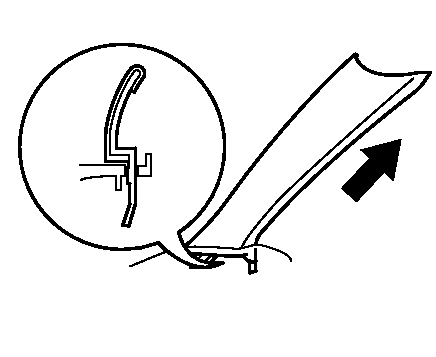

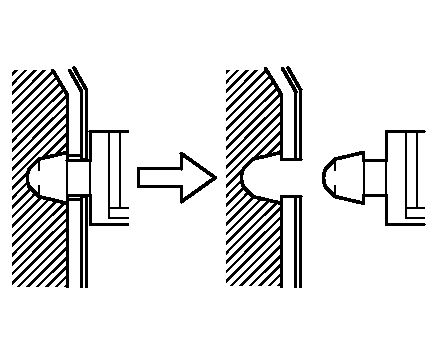

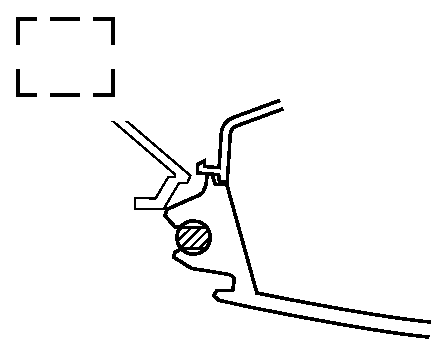

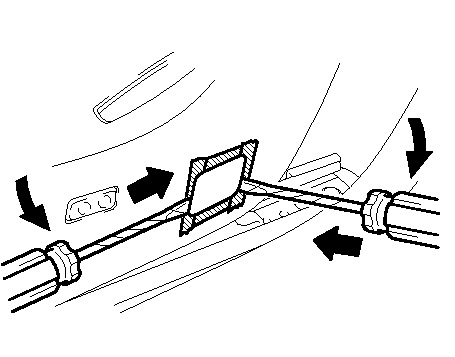

Shape (Example) Illustration Procedures Remove clips with a clip remover or pliers. Remove clips with a clip remover or screwdriver. Remove clips with a wide scraper to prevent panel damage. Remove clips by pushing the center pin through and prying out the shell. Remove clips by unscrewing the center pin and prying out the shell. Remove clips by prying out the pin and then prying out the shell.
- The removal and installation methods of typical clips used for vehicle body parts are shown in the table below.
- CLAWS
- The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.
HINT:
If claws of caps or covers are damaged during a procedure, always replace the caps or covers with new ones.

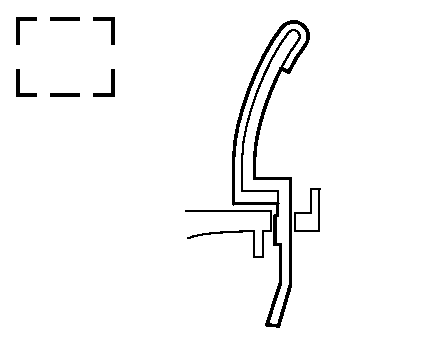

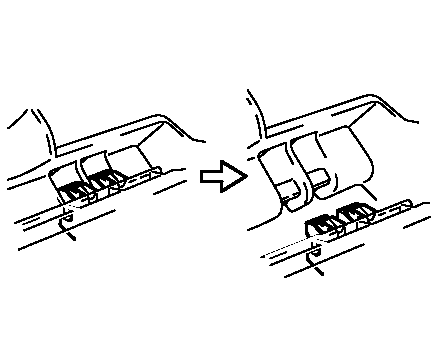

Shape (Example) Illustration Procedures Using a screwdriver, detach the claws and remove the caps or covers. Using a screwdriver, detach the claws and remove the caps or covers. Using a screwdriver, detach the claws and remove the caps or covers.
- The removal and installation methods of typical claws used for vehicle body parts are shown in the table below.
- HINGE, GUIDE, CLAMP, PIN ETC.
- The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.
HINT:
If clamps are damaged during a procedure, always replace the cap or cover that has damaged clamps with a new one.

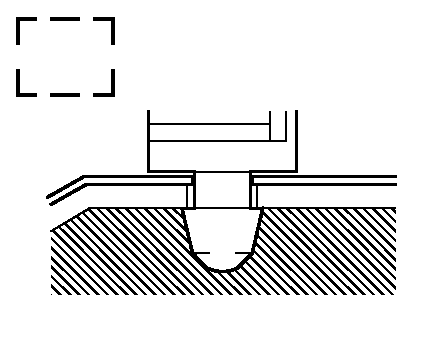

Shape (Example) Illustration Procedures Disengage the pins by pulling. Disengage the pins by pulling. Remove the clamps with pliers. Disengage the pins by pulling.
- The removal and installation methods of typical hinges, guides, clamps and pins used for vehicle body parts are shown in the table below.
- REMOVAL AND INSTALLATION OF VACUUM HOSES
- To disconnect a vacuum hose, pull and twist from the end of the hose. Do not pull from the middle of the hose as this may cause damage.

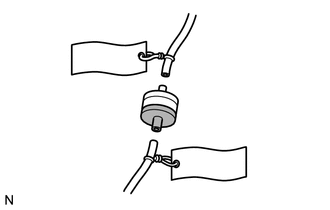

- When disconnecting vacuum hoses, use tags to identify where they should be reconnected.
- After completing any hose related repairs, double check that the vacuum hoses are properly connected. The label under the hood shows the proper layout.
- When using a vacuum gauge, never force the hose onto a connector that is too large. If a hose has been stretched, it may leak air. Use a step-down adapter if necessary.
- TORQUE WHEN USING TORQUE WRENCH WITH EXTENSION TOOL

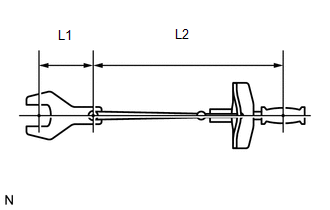

- Use the formula below to calculate special torque values for situations where SST or an extension tool is combined with a torque wrench.
- HINTS ON OPERATIONS
