2012 Lexus LS 460 AWDFACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
- CHECK CAMSHAFT POSITION SENSOR OUTPUT VOLTAGE
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Turn the engine switch on (IG).

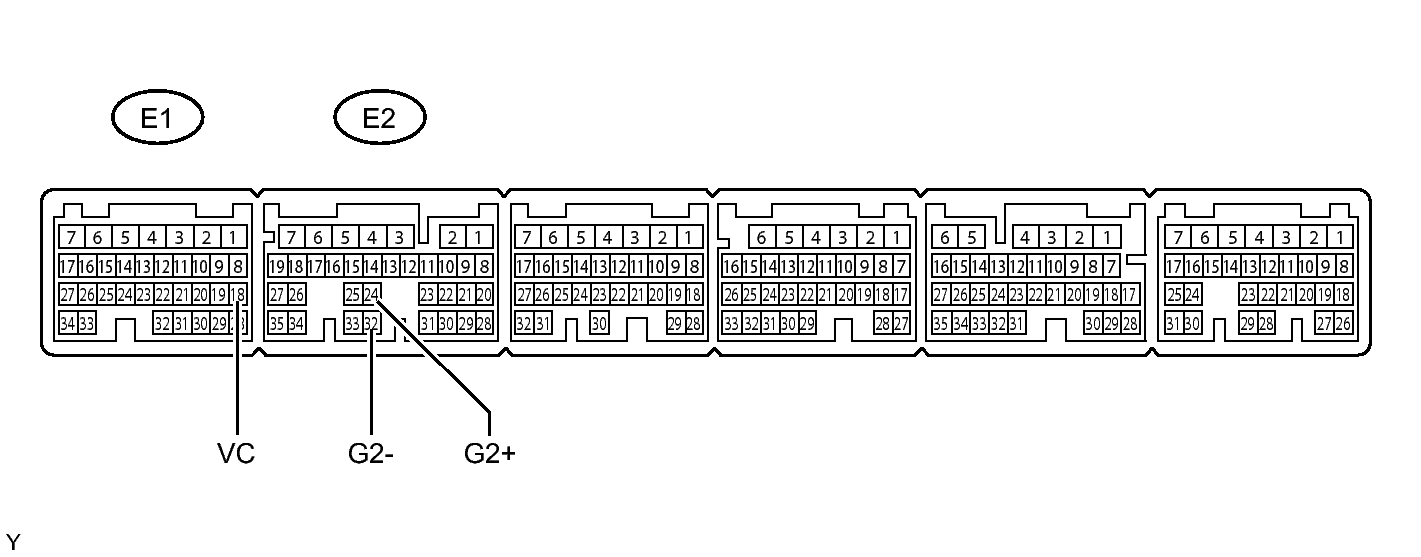

- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition E1-18 (VC) - E2-32 (G2-) Engine switch on (IG) 5 V - While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition E2-24 (G2+) - E2-32 (G2-) Engine switch on (IG) 3.75 to 4.50 V (Voltage (Hi))
0.50 to 1.25 V (Voltage (Lo))
