Clearance Warning ECU Power Source Circuit: Procedure
- INSPECT FUSE (P-IG1-1)
- Remove the P-IG1-1 fuse from the passenger side junction block.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition P-IG1-1 fuse Always Below 1 Ω
NG → REPLACE FUSE
OK: Go to next step

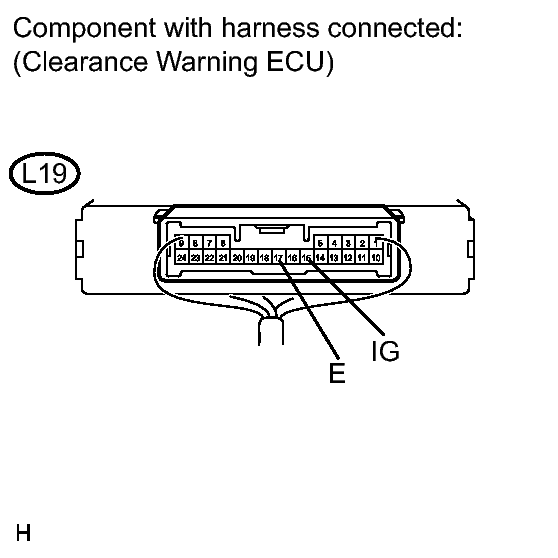

- CHECK HARNESS AND CONNECTOR (CLEARANCE WARNING ECU POWER SUPPLY)
- Disconnect the L19 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition 15 (IG) - Body ground Always Below 1 Ω 17 (E) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition Specified Condition 15 (IG) - 17 (E) Engine switch on (IG) 11 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 3
- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
