Radio Receiver Power Source Circuit: Procedure
- INSPECT FUSE (D MPX-B2, P-ACC)
- Disconnect the D MPX-B2 fuse from the main body ECU.
- Disconnect the P-ACC fuse from the passenger side junction block.
- Measure the resistance of the fuses.
Standard resistance
Tester Connection Condition Specified Condition D MPX-B2 fuse Always Below 1 Ω P-ACC fuse Always Below 1 Ω
NG → REPLACE FUSE
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - BATTERY AND BODY GROUND)

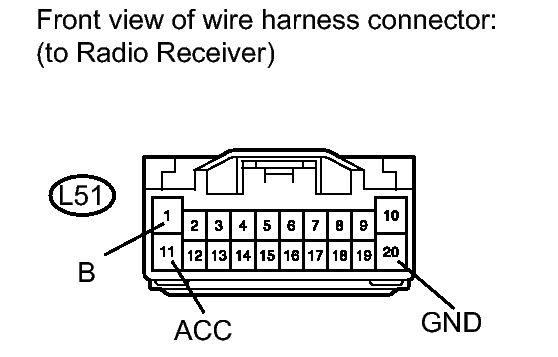

- Disconnect the L51 receiver connector.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition L51-1 (B) - Body ground Always 11 to 14 V L51-11 (ACC) - Body ground Engine switch on (ACC) 11 to 14 V - Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition L51-20 (GND) - Body ground Always Below 1 Ω
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 3
- PROCEED TO NEXT INSPECTION PROCEDURE SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
