DTC 01-DC: Transmission Error: Procedure

1. Check if the component shown by sub-code is displayed in the check result of the other components.
   1. Check if "01-DC" is output for the other components.
   2. If "01-DC" is output for any other components, check if the same physical address is displayed.
      RESULT



      Result	Proceed to
      "01-DC" is output and the same physical address is displayed	A
      "01-DC" is not output or the same physical address is not displayed	B

      HINT:

      For the list of the components shown by sub-codes, refer to the table in the next step.

B → See step   4

A: Go to next step

1. Enter the diagnostic mode.

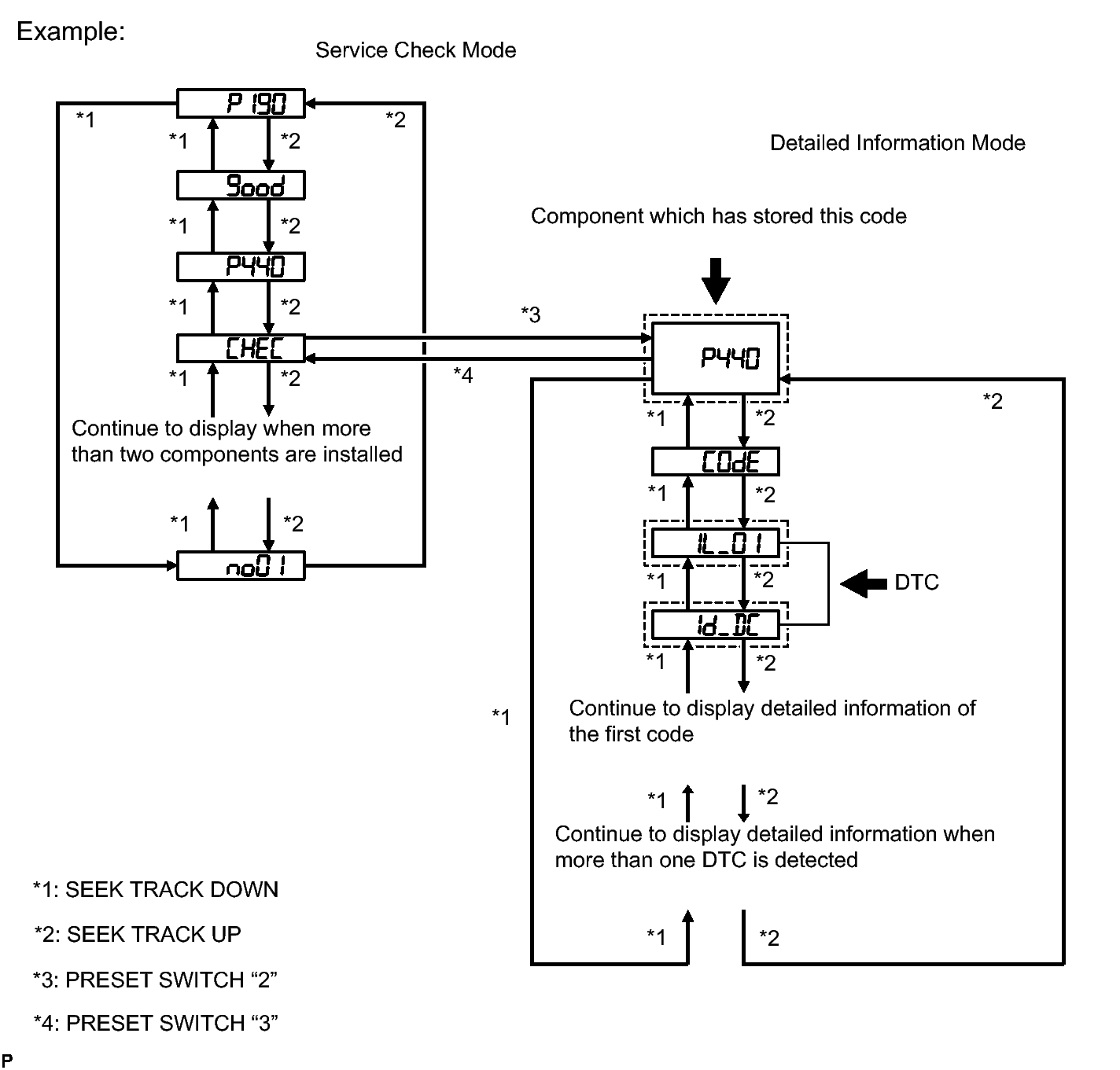

   Fig 1: Identifying Display Screen - Service Check Mode (Example)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press the preset switch "2" to change to "Detailed Information Mode".
3. Identify the component which has stored this code.
   COMPONENT TABLE



   Component	Physical address
   Stereo component amplifier	440
   Integration control and panel assembly	1C4
   Radio receiver	190

   HINT:

   • "440 (Stereo component amplifier)" is the component which has stored this code in the example shown in the illustration.
   • For details of the DTC display, refer to the "DTC CHECK/CLEAR". Refer to DTC CHECK / CLEAR .

NEXT: Go to next step

1. Select the component which has stored this code.
   COMPONENT TABLE



   Component	Proceed to
   Stereo component amplifier	Stereo component amplifier communication error
   Integration control and panel assembly	Integration control and panel assembly communication error
   Radio receiver	Radio receiver communication error

NEXT → END

1. Clear the DTC. Refer to DTC CHECK / CLEAR .

   HINT:

   If "01-DC" is output for only one component, this may not indicate a malfunction.

NEXT: Go to next step

1. Recheck the DTC and check if the same trouble code occurs again.

   OK

   Malfunction disappears.

NG → See step   3

OK → END
