2012 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Speed Sensor: Removal: Removal

REMOVE NO. 2 ENGINE UNDER COVER
REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY See step 2
DRAIN AUTOMATIC TRANSMISSION FLUID See step 3
REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY See step 4
REMOVE VALVE BODY OIL STRAINER ASSEMBLY See step 5
REMOVE TRANSMISSION VALVE BODY ASSEMBLY See step 6
REMOVE SPEED SENSOR NT
1. Disconnect the sensor connector.

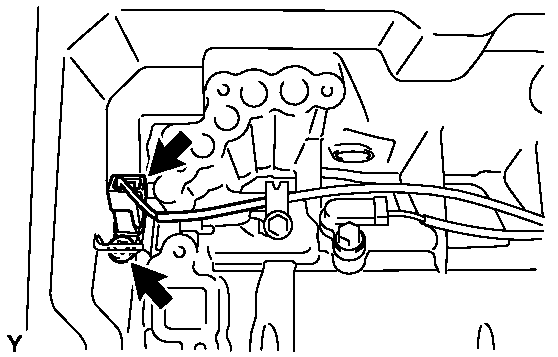

  Fig 1: Locating Speed Sensor NT
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a T30 "TORX" wrench, remove the bolt and speed sensor from the oil pump.
3. Remove the O-ring from the speed sensor.
REMOVE SPEED SENSOR NC3
1. Disconnect the sensor connector.

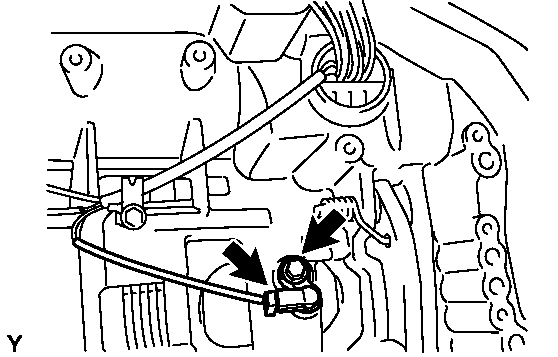

  Fig 2: Locating Speed Sensor NC3 And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and speed sensor from the transmission case.
REMOVE SPEED SENSOR SP2
1. Disconnect the sensor connector.

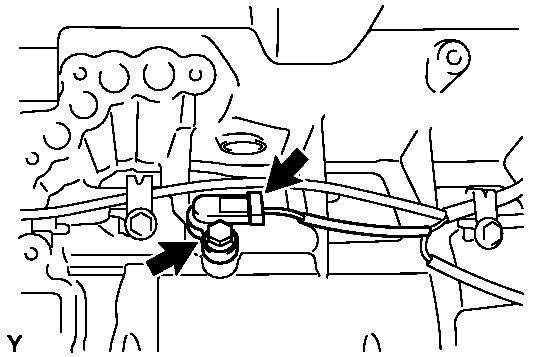

  Fig 3: Locating Speed Sensor SP2 With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and speed sensor from the transmission case.
