2012 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Rear Speed Sensor: Removal: Removal

HINT:

Use the same procedure for the RH side and LH side.
The procedure listed below is for the LH side.
If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

REMOVE REAR WHEEL
REMOVE REAR SPEED SENSOR WIRE
1. Using a screwdriver, disconnect the rear speed sensor wire.

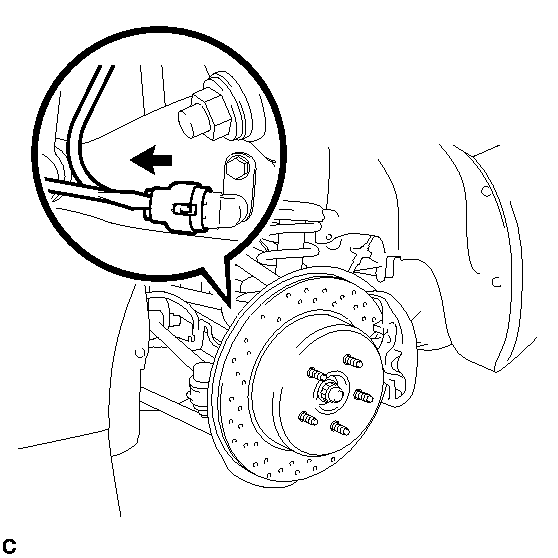

  Fig 1: Disconnecting Rear Speed Sensor Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SPEED SENSOR
1. Remove the bolt and rear speed sensor.

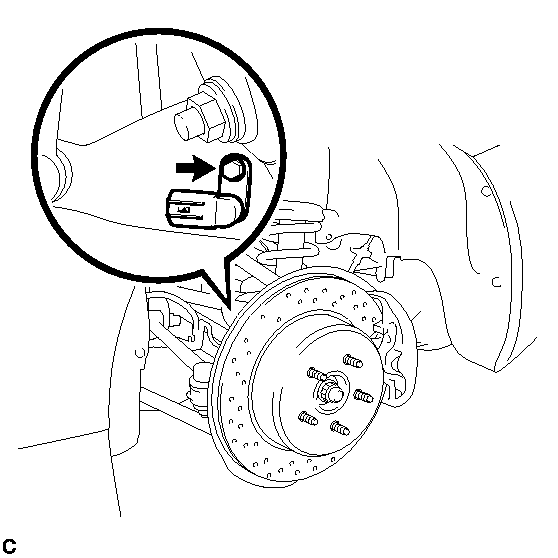

  Fig 2: Locating Bolt And Rear Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
