Power Source Control Ecu: Installation: Installation

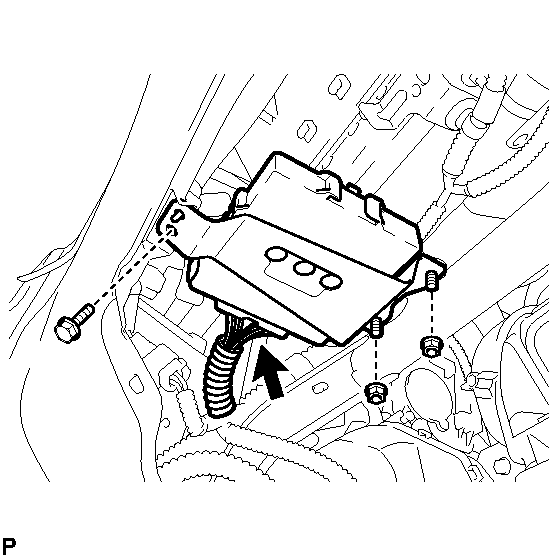

- INSTALL POWER SOURCE CONTROL ECU
- Connect the connector.
- Install the power source control ECU with the bolt and 2 nuts.
Bolt
Torque: 11 N*m (107 kgf*cm, 8 ft.*lbf)
Nut
Torque: 13 N*m (126 kgf*cm, 9 ft.*lbf)
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY . Refer to INSTALLATION - Step 15
- INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY . Refer to INSTALLATION - Step 1
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 17
- INSTALL INSTRUMENT SIDE PANEL RH . Refer to INSTALLATION - Step 18
- INSTALL FRONT DOOR OPENING TRIM COVER RH
HINT:
Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 15 .
- INSTALL DOOR SCUFF PLATE ASSEMBLY RH
HINT:
Use the same procedure for the RH side and LH side. Refer to INSTALLATION - Step 16 .
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
