2012 Lexus IS 350 Base, AWDFACTORY OEM SERVICE PROCEDURE

On-Vehicle Inspection

  1. INSPECT CHECK VVT SENSOR OUTPUT VOLTAGE

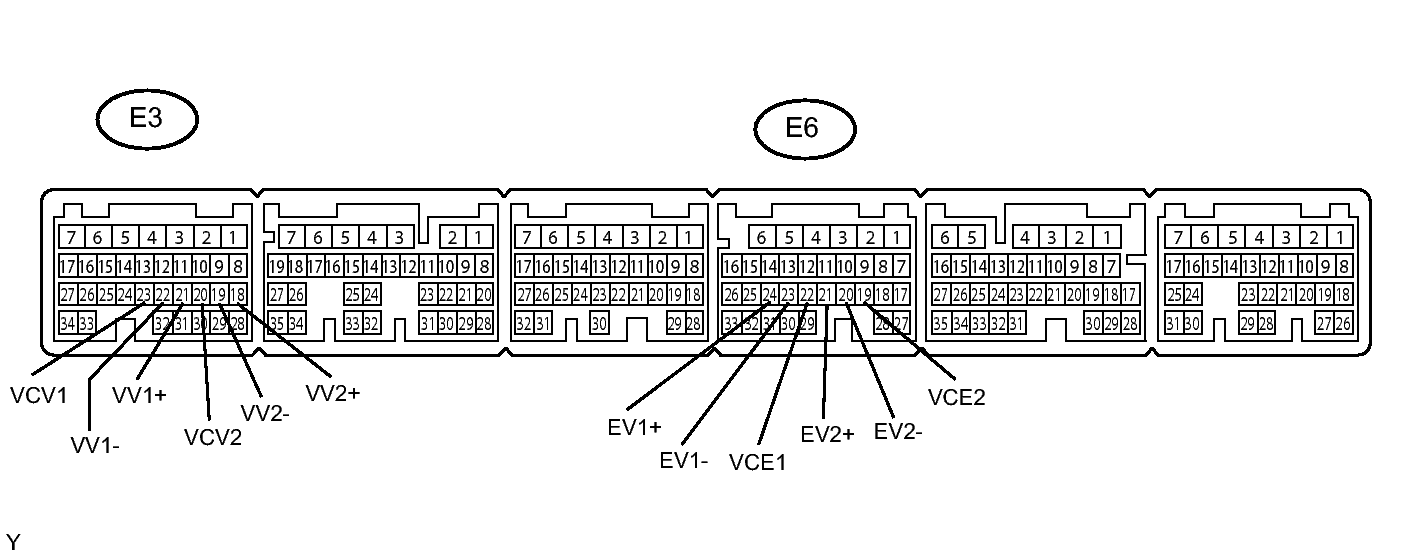

    Fig 1: Identifying VVT Sensor Connectors & Terminals
    GTY129331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the engine switch on (IG).
    2. Check the voltage between the terminal.

      Standard voltage

      Tester Connection Condition Specified Condition
      E3-23 (VCV1) - Body ground Engine switch on (IG) 5 V
      E3-20 (VCV2) - Body ground Engine switch on (IG) 5 V
      E6-22 (VCE1) - Body ground Engine switch on (IG) 5 V
      E6-19 (VCE2) - Body ground Engine switch on (IG) 5 V
    3. While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.

      Standard voltage

      Sensor Position Terminal No. Voltage (Hi) Voltage (Lo)
      Bank 1 (Intake side) VV1+ (E3-21) - VV1- (E3-22) 3.75 to 4.50 V 0.50 to 1.25 V
      Bank 2 (Intake side) VV2+ (E3-18) - VV2- (E3-19) 3.75 to 4.50 V 0.50 to 1.25 V
      Bank 1 (Exhaust side) EV1+ (E6-24) - EV1- (E6-23) 3.75 to 4.50 V 0.50 to 1.25 V
      Bank 2 (Exhaust side) EV2+ (E6-21) - EV2- (E6-20) 3.75 to 4.50 V 0.50 to 1.25 V
