2012 Lexus IS 350 Base, AWDFACTORY OEM SERVICE PROCEDURE

Engine Switch: Installation: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.

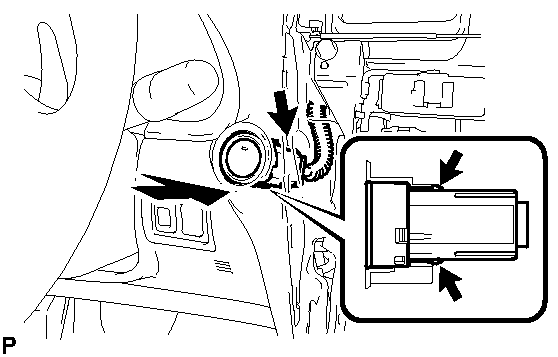

      Fig 1: Identifying Engine Switch
      GTY127230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the switch connector.
  2. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Multi-display)  . Refer to INSTALLATION - Step 4
  3. INSTALL DISPLAY AND NAVIGATION MODULE DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Multi-display)  . Refer to INSTALLATION - Step 8
  4. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION - Step 41
  5. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  . Refer to INSTALLATION - Step 42
  6. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 43
  7. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 44
  8. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray)  . Refer to INSTALLATION - Step 45
  9. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 46
  10. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)  . Refer to INSTALLATION - Step 47
  11. INSTALL CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 50
  12. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 51
  13. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 52
  14. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
