2012 Lexus IS 250C Standard TransFACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER
    1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

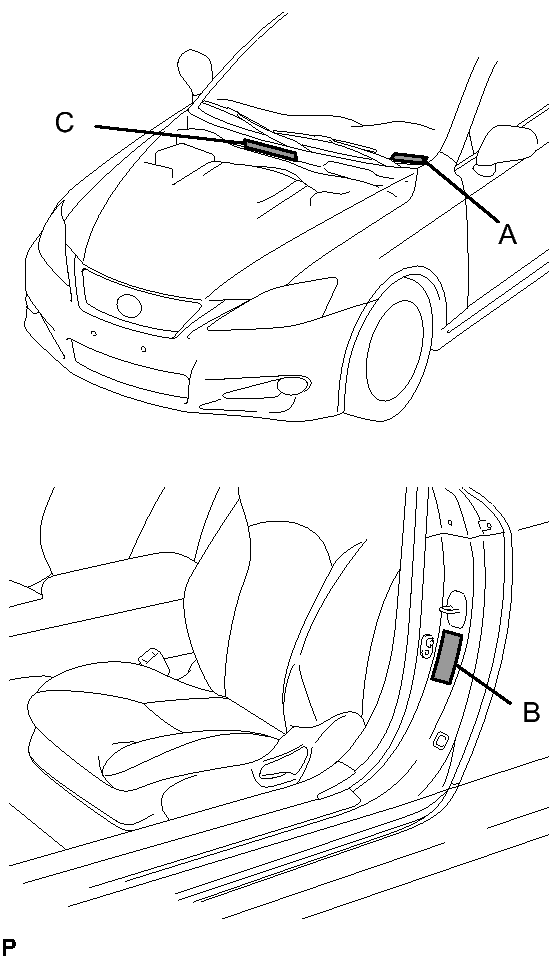

      Fig 1: Location of Vehicle Identification Number
      GTY276442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      A

      Vehicle Identification Number

      B

      Certification Label

      C

      Frame Number

  2. ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

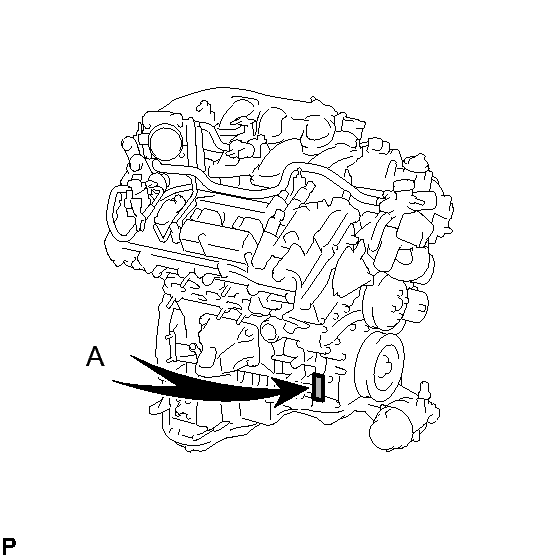

      Fig 2: Location of Engine Serial Number
      GTY279407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      A

      2GR-FSE, 4GR-FSE Engine Serial Number

    2. The transmission serial number is stamped on the case as shown in the illustration.

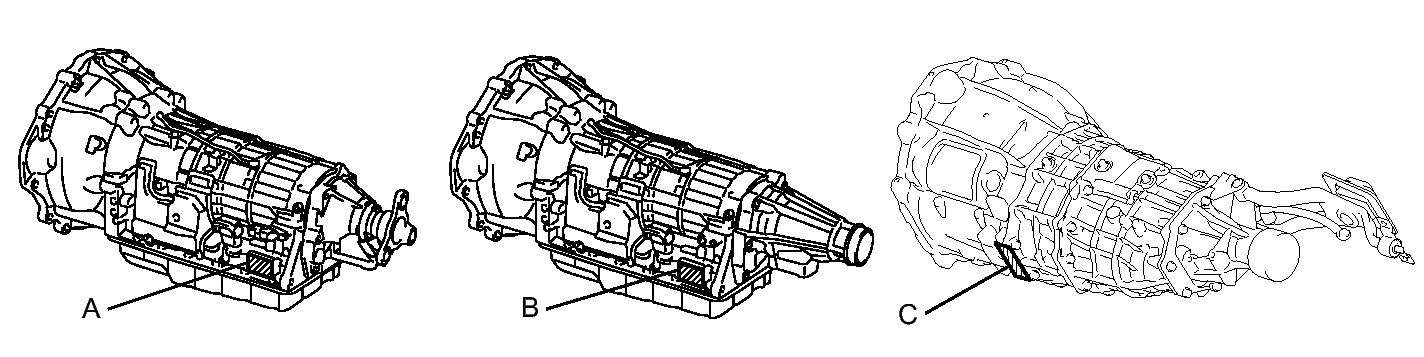

      Fig 3: Identifying Transmission Serial Number
      GTY283252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      A

      A760E Transmission Serial Number

      B

      A960E Transmission Serial Number

      C

      RA62 Transmission Serial Number
