Rear Speed Sensor: Removal: Removal
HINT:
- Use the same procedure for the RH side and LH side.
- The procedure listed below is for the LH side.
- If the sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.
- PRECAUTION (w/ Navigation System for HDD) NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE REAR WHEEL

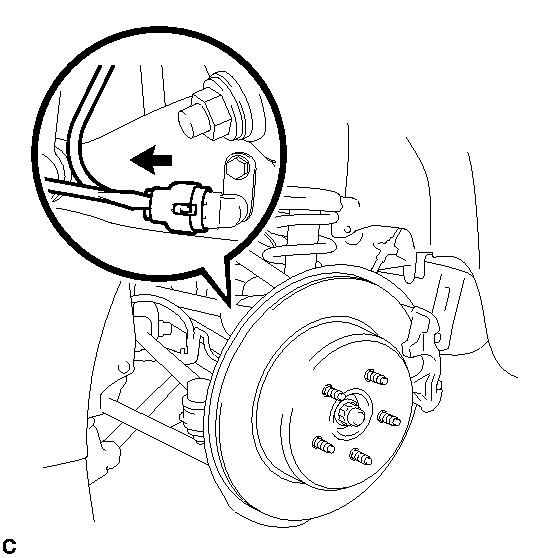

- REMOVE REAR SPEED SENSOR WIRE
- Using a screwdriver, disconnect the rear speed sensor wire.

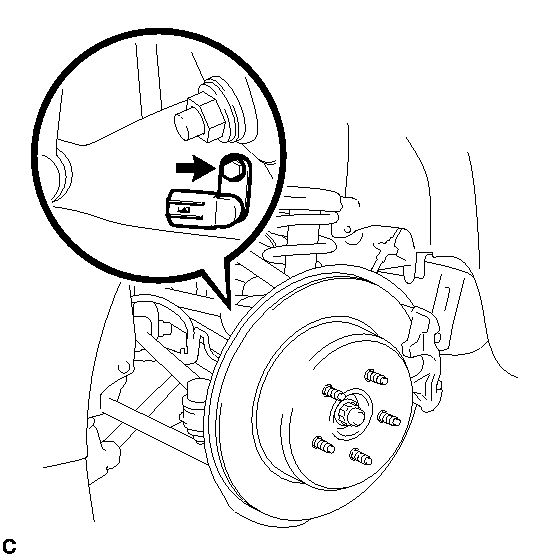

- REMOVE REAR SPEED SENSOR
- Remove the bolt and rear speed sensor.
