Integration Relay: Removal: Removal
- REMOVE COOL AIR INTAKE DUCT SEALÂ . Refer to REMOVAL - Step 1
- REMOVE ENGINE ROOM SIDE COVER LHÂ . Refer to REMOVAL - Step 2
- REMOVE INTEGRATION NO. 1 RELAYÂ
- Remove the No. 2 relay block cover.

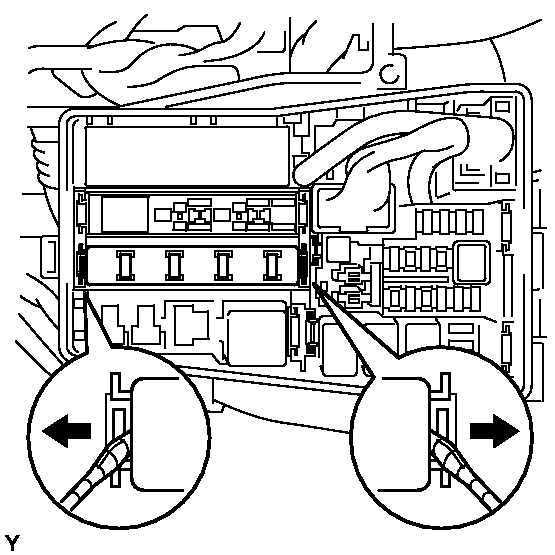

- Using a screwdriver, detach the 2 claws and disconnect the integration relay from the engine room No. 2 relay block.
HINT:Â
Tape the screwdriver tip before use.
- Disconnect the 3 connectors.
