Radio Receiver Power Source Circuit: Procedure
- INSPECT RADIO RECEIVER ASSEMBLY
- Disconnect the radio receiver assembly connector.
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Condition J65-15 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.STANDARD VOLTAGE

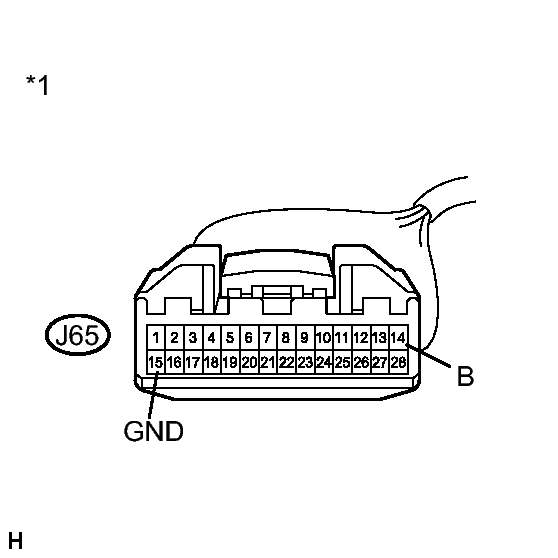

Tester Connection Condition Specified Condition J65-14 (B) - J65-15 (GND) Always 11 to 14 V TEXT IN ILLUSTRATION*1 Front view of wire harness connector
(to Radio Receiver Assembly)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE. Refer to PROBLEM SYMPTOMS TABLE
