Center Airbag Sensor Communication Stop Mode: Procedure
- CHECK FOR OPEN IN CAN BUS WIRE (CENTER AIRBAG SENSOR BRANCH WIRE)
- Turn the engine switch off.
- Disconnect the center airbag sensor connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

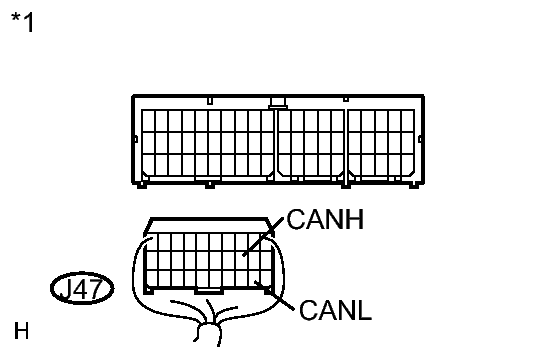

TEXT IN ILLUSTRATION*1 Rear view of wire harness connector
(to Center Airbag Sensor) - Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Value J47-13 (CANH) - J47-22 (CANL) Engine switch off 54 to 69 Ω
NG → REPAIR OR REPLACE CENTER AIRBAG SENSOR BRANCH WIRE OR CONNECTOR (CANH, CANL)
OK: Go to next step
- CHECK WIRE HARNESS (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.STANDARD RESISTANCE
Tester Connection Condition Specified Value J47-25 (E1) - Body ground Always Below 1 Ω J47-26 (E2) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.STANDARD VOLTAGE

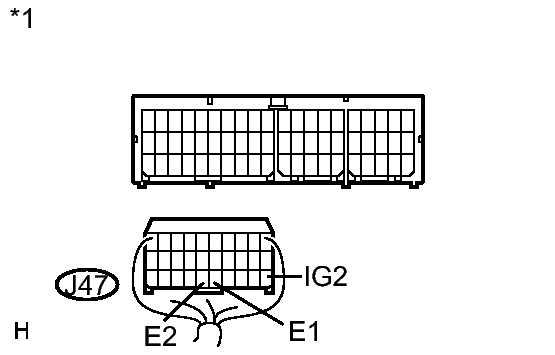

Tester Connection Condition Specified Value J47-21 egg - Body ground Engine switch on (IG) 11 to 14 V TEXT IN ILLUSTRATION*1 Rear view of wire harness connector
(to Center Airbag Sensor)
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
OK → See step 3
- Measure the resistance according to the value(s) in the table below.
- REPLACE CENTER AIRBAG SENSOR ASSEMBLY. Refer to REMOVAL
