2010 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE

Driving Support Ecu: Removal: Removal

  1. REMOVE FRONT DOOR SCUFF PLATE LH  . Refer to REMOVAL - Step 6
  2. REMOVE COWL SIDE TRIM BOARD LH  . Refer to REMOVAL - Step 8
  3. REMOVE DASH PANEL EXTENSION LH

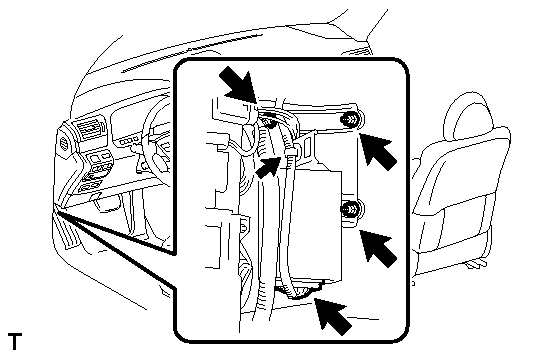

    Fig 1: Identifying Dash Panel Extension Nuts And Bolt
    GTY288622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a clip remover, remove the clip.
    2. Disconnect the connector.
    3. Remove the 2 nuts, bolt and dash panel extension LH.
  4. REMOVE DRIVING SUPPORT ECU

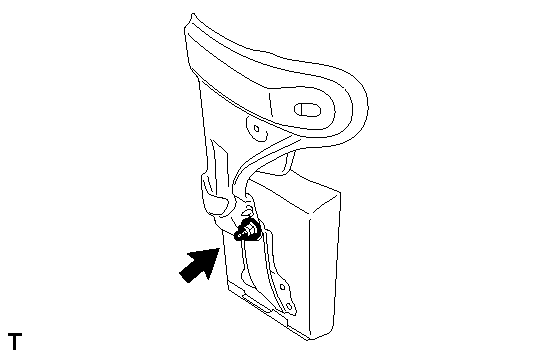

    Fig 2: Identifying Driving Support ECU Connector Nut
    GTY285173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and ECU.
      NOTE:
      • Do not drop or subject the ECU to strong shocks.
      • During the removal and installation, do not remove the drip-proof cover.
